DC 12v brass flexible impeller pump

DC 12v brass flexible impeller pump

DC micro electric marine 12v brass flexible impeller pump is ideal to use for the bilge, deckwash or shower drain providing a high flow and hassle free operation.

  • item no.:

    CF-IP1200
  • lead time:

    7-30DAYS
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT/LC
  • color:

    BLACK
  • MOQ:

    50
products details

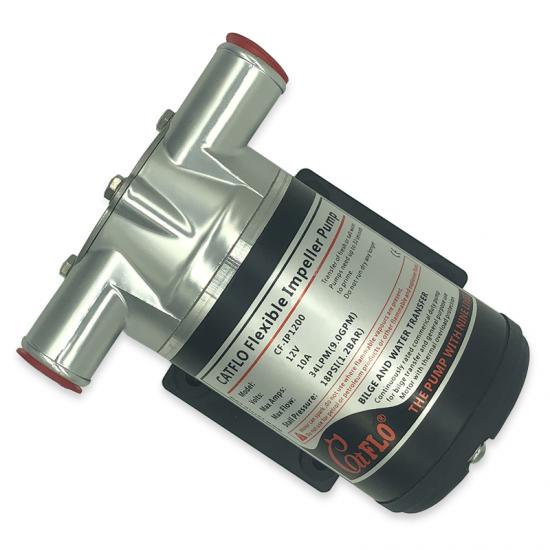

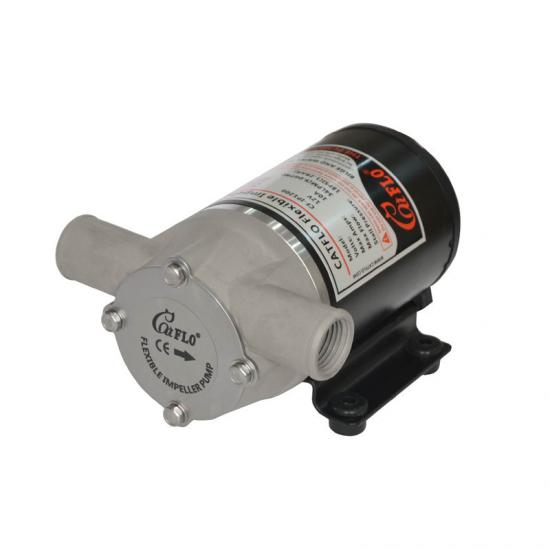

DC 12v brass flexible impeller pump

Flexible impeller pump has a heavy duty construction with a bronze head unit and is rated for " Commercial duty". Continuously rated, has a high discharge head and is self priming. Bilge debris presents no problem to these robust water pumps,their simple design means fewer wearing parts. It is best to mount so that water dripping from loose port connection will not wet the motor. The pump head may be rotated 180 degrees on the motor to reverse direction of flow.

REMIND:  Should be installed in a dry and ventilated position;  Must not run dry, better with bilge controller panel to avoid running dry.



Specification

Body Materials

Bronze

Impeller

Neoprene compound

Seal

Lip Type

Inlet/Outlet Ports

 Marine 8 GPM Self Priming Impeller Bilge Pump - Replaces Water Supply Chain Provider

1/2"BSP*3/4’’Barb

Voltage

12v/24v dc

Amp Draw

Max.12.0(amp)

Type

self-priming bilge pump

Mode

Cheap  8.0 GPM 12V Industrial Self-Priming bilge Pump from China

Thermally Protected,High Quality Efficient Motor

Certifications Option

CE Approval

Liquid Temperature

140°F (60°C) Max.

Priming Capabilities

3.2 feet (1 m) suction lift

Max Flow rate

30.0lpm (8.0gpm)

Temperature Limits

Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 60°C).



FEATURES

· Good flow rate, continuously rated pump

· 8.0gpm (30lpm) at 10ft (3m) total head

· Self -priming up to 4ft (1.2m) allows

· Mounting above wet bilges

· Shower debris presents no problem to this bronze bodied, flexible impeller design

· Simple design means fewer wearing parts-all user serviceable

· MARINE (ignition Protection)



APPLICATION

· Agriculture/Yacht / RV/Caravan pressurized water system

· Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)

· Cleaning machine, Humidifier, Water purification, Medical apparatus

· Any other pressurization system

· Drain water on deck and wash deck

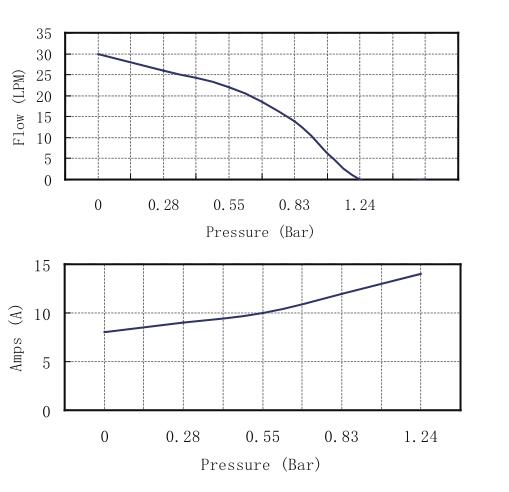

PUMP CONFIGURATIONS


Model

Voltage(V)

Open flow(LPM/GPM)

Stall Pressure (psi/bar)

Max Draw(A)

Inner box(mm)
N.W/G.W(kg)

CF-IP1200

12

30/8.0

18/1.2

12.0

340x120x105
2.20/2.50

CF-IP2400

24

30/8.0

18/1.2

7.0

340x120x105
2.20/2.50

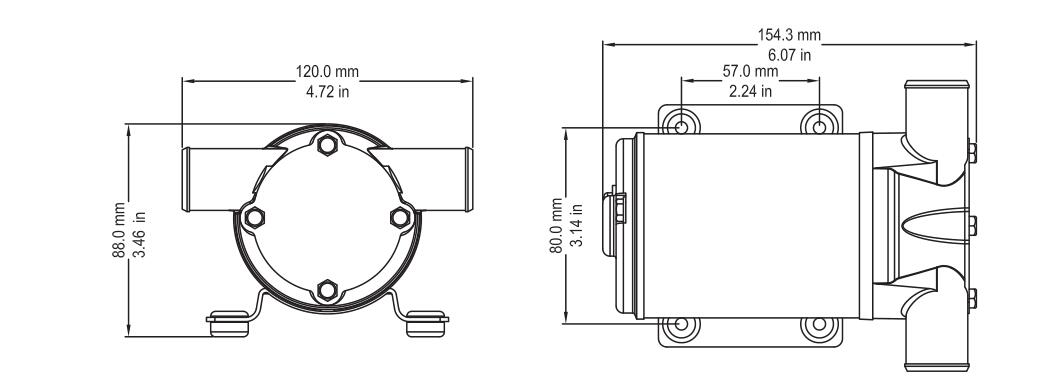

Dimension

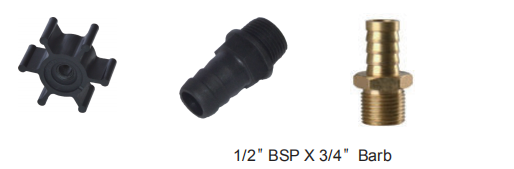

Fittings for your option
