Industrial submersible pump is suitable for hydraulic systems fed with cold water—used in line to be fed by gravity or pressure. Ideal For Fishing Boats, Cruisers, Runabouts, Yachts, Etc.
item no.:
CFBP-0204-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEMOQ:

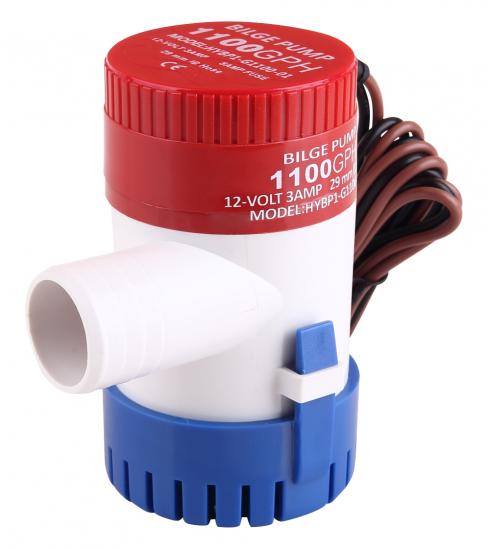

100Industrial Non Automatic submersible pump 12V 1100 GPH
Built for the harsh marine environment, are suitable to withstand the most adverse condition. The water-cooled engine ensures a long service life.
CFBP-0204-01 Non Automatic submersible pump 1100 GPH manual bilge pump handles the spray and rainwater that can fill a small open boat quickly. Completely submersible, rust and corrosion-free and ignition protected. 12v DC submersible pump Offers many features while keeping cost and size to a minimum.
FEATURES & BENEFITS
* Pump and switch are stand alone products
* Compact, efficient, long life motors. New mercury free float switches.
* Size: 350,500,750,1100gph in 12 and 24 volt versions.
* Easy clean snap-lock strainer bases
* Anti-airlock protection
* Exclusive moisture tight seals
* Completely submersible
* Marine grade blocked wiring
* Silent and vibration-less operation.
Motor:
Compact, efficient, long life motorLeads
18 AWG,1m long Leads Temperature
Limits
Duty Cycle
Intermittent
Pump:
Liquid Temperature
110℉(43℃)Max.Max.
Priming Capabilities
Not needed flooded suction
Power
3.0 amps max current draw
Max Pressure
TYPICAL APPLICATIONS
Industry, RV&Campers, Marine, Agriculture etc.

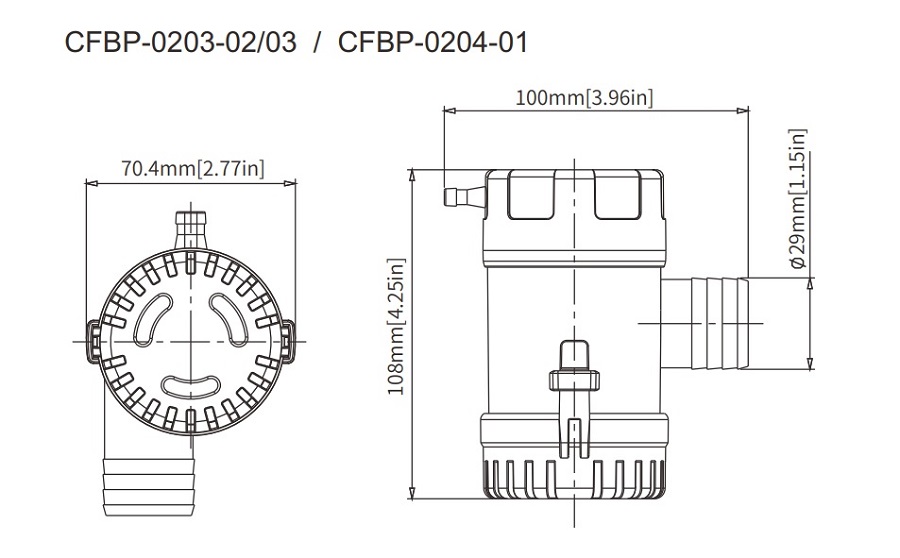

DEMENSION
STANDARD PUMP CONFIGURATIONS
Model |
Volt |
Flow rate(GPH) |
Current rate(A) |
Max Draw (A) |
Wire lead |
Outlet dia (Inch) |
Inner box |
CFBP-0204-01 |
12 |
1100 |
3 | 3.5 |
3-PIN/1M |
1-1/8” |
10.2X9.2X12 |

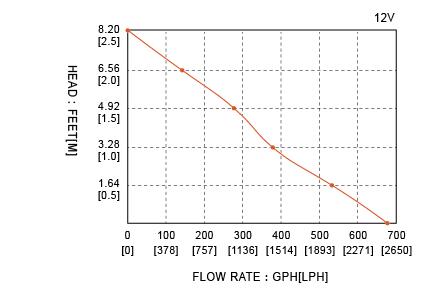

PERFORMANCE
Voltage |
Current |
Flow rate |
Head (M) |
Open |
2.5 |
675 |
0 |
12 |
3.05 |
537 |
0.5 |
12 |
3.64 |
377 |
1 |
12 |
4.36 |
286 |
1.5 |
12 |
4.62 |
145 |
2 |
12 |
5 |
0 |
2.5 |

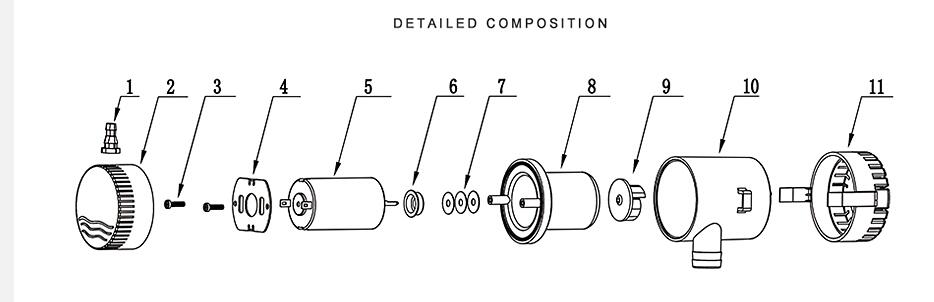

Item |
Description |
Quantity |
1 |
Wire buckle |
1 |
2 |
Pump cover |
1 |
3 |
Tapping screw |
1 |
4 |
Motor bracket |
1 |
5 |
Motor |
1 |
6 |
Seal base |
1 |
7 |
Seal |
1 |
8 |
Motor cover |
1 |
9 |
Impeller |
1 |
10 |
Pump housing |
1 |
11 |
Strainer |
1 |
SHIPPING INFORMATION
Unit pump weight(N.W/G.W) |
0.45 lbs (0.34 kg) |
Unit size |
10 x 9 x 11.8 cm |
Mater carton size |
52 x 38 x 26.4 cm |
Mater carton quantity |
40pcs |
Mater carton weight |
16kgs |
