12 Volt DC Smart Water Pump for Marine RV Automatic Demand Diaphragm Flow High Pressure Variable Speed Pump.
item no.:
ZN-53lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEFeatures and Benefits
5-chamber diaphragm pump with precise pressure control and steady performance. Built-in bypass reduces cycling, while low starting pressure extends pump life. Features comprehensive protection: over-voltage, over-current, under-voltage, and high temperature protection. Ignition protected for safe marine use. Automatic pressure sensor controlled by circuit board ensures constant water pressure on demand. 14AWG, 9" (22.8 cm) long wire leads. Available in 12V DC and 24V DC.
TYPICAL APPLICATIONS
Yacht and RV water systems requiring constant and stable water pressure, marine fresh water and washdown systems.

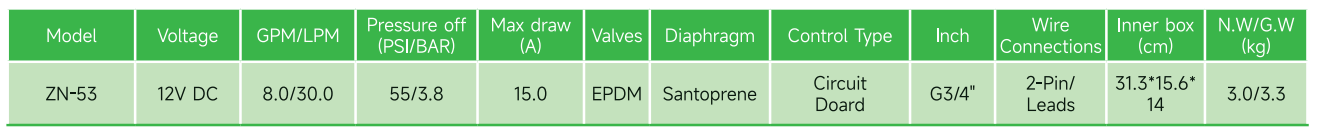

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
140° F (60° C)MAX |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
G1'' |
|
Weight |
6.6 lbs (3.0 kg) |
FITTINGS
DIMENSIONS
