Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
ZNW1-53lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITE
Product Description:
5-chamber diaphragm pump with precise pressure control and steady performance. Supports mobile APP control with Chinese, English, French, and German interfaces. Built-in bypass reduces cycling, while low starting pressure extends pump life. Features comprehensive protection: over-voltage, over-current, under-voltage, and high temperature protection. Ignition protected for safe marine use. Automatic pressure sensor controlled by circuit board ensures constant water pressure on demand. 14AWG, 9" (22.8 cm) long wire leads. Available in 12V DC and 24V DC.
Features and Benefits
Performance
Smart Control
Protection
Electrical
TYPICAL APPLICATIONS
Yacht and RV fresh water systems, small cabin and galley water delivery, light-duty marine water supply.

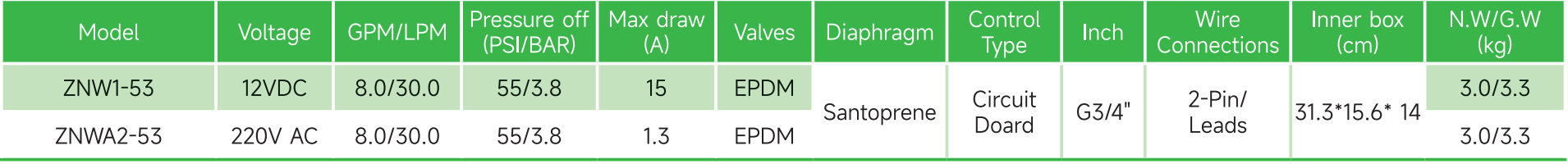

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F)Max |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
G3/4" |
|
Valve |
EPDM |
|
Wire connect |
2-Pin/Leads |

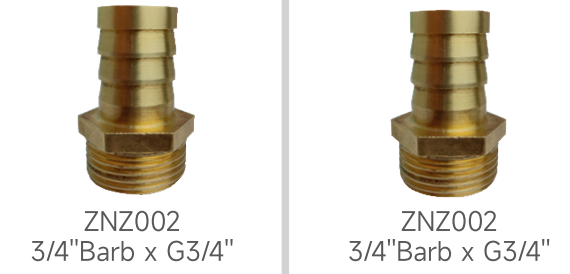

FITTINGS

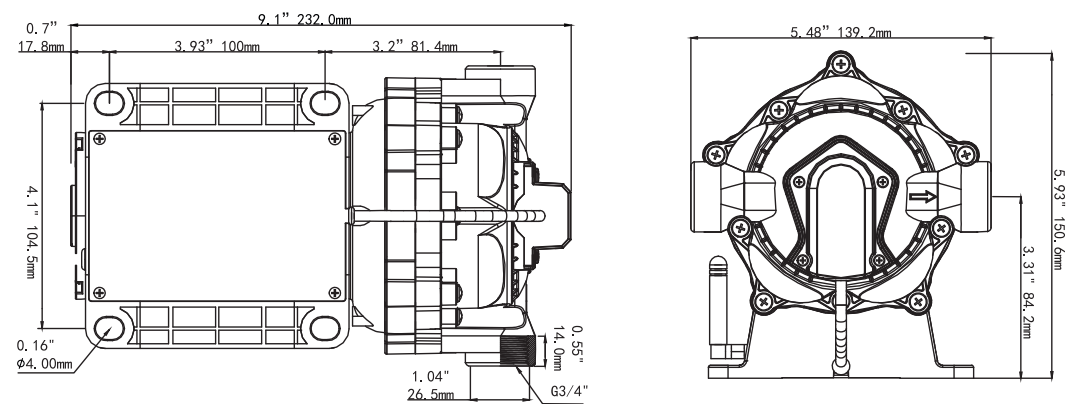

DIMENSIONS
