Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
ZN-52lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEFeatures and Benefits
TYPICAL APPLICATIONS
Used fordairy products, beverages, food, cosmetics, food additives, fine chemicals

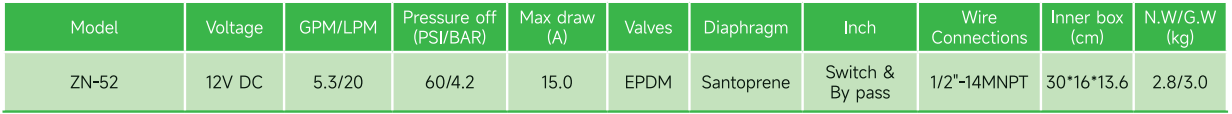

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
6 feet (1. .8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
1/2" MNPT |
|
Valve |
EPDM |
|
Wire connect |
2-Pin/Leads |

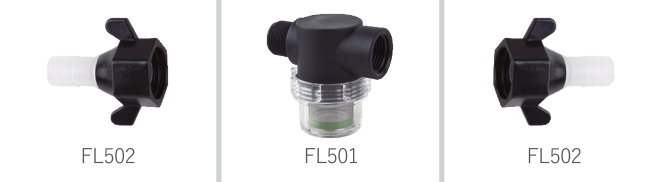

FITTINGS

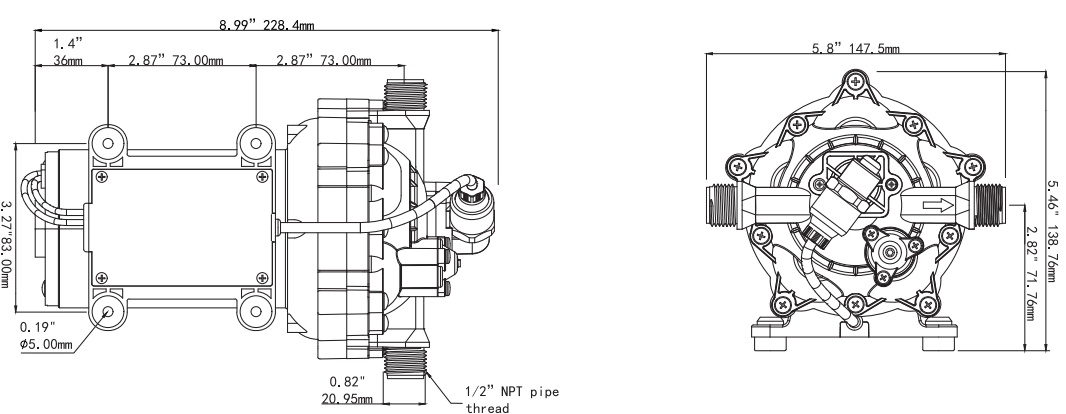

DIMENSIONS
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
