ZN-42 SERIES CONSTANT PRESSURE SMART PUMP

Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.

item no.:
ZN-42
lead time:
7-30 days
product orgin:
FUJIAN
shipping port:
FUZHOU(MAWEI)
payment:
TT
color:
RED AND WHITE

products details

Features and Benefits

Upto4.0GPM
Self priming
Run dry safe
Quiet operation
On-demanduse
Industry Standard mounting pattern
Completely rubber mounting -base
Intemal bypass technology reduces cycling
16AWG,9.4"(23.8 cm) long with
Over current protection
Under-voltage protection
Over-voltage protection
High temperature protection
Cryogenic protection
Automatic: pressure sensor controlled by circuit boarc

TYPICAL APPLICATIONS

Used fordairy products, beverages, food, cosmetics, food additives, fine chemicals

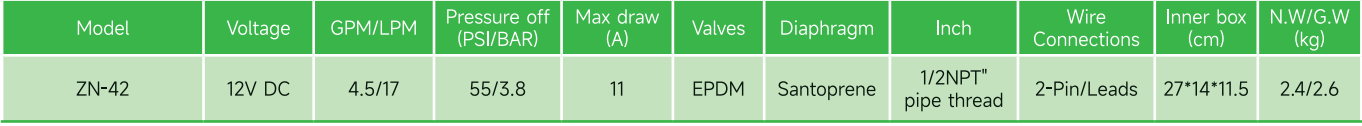

STANDARD PUMP CONFIGURATIONS

PUMP
Type	4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	pressure switch controlled or by-pass controlled
Max Recommended Temperature	140° F(60° C) Max
Priming Capabilities	6 feet (1.8 m) suction lift
Pressure off	Shut-off Pressure 40PSI
Inlet/Outlet Ports	1/2"-1 4MNPT
Valve	EPDM
Wire connect	2-Pin/Leads

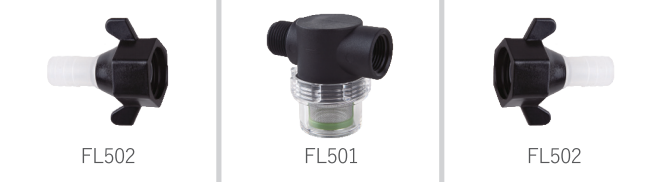

FITTINGS

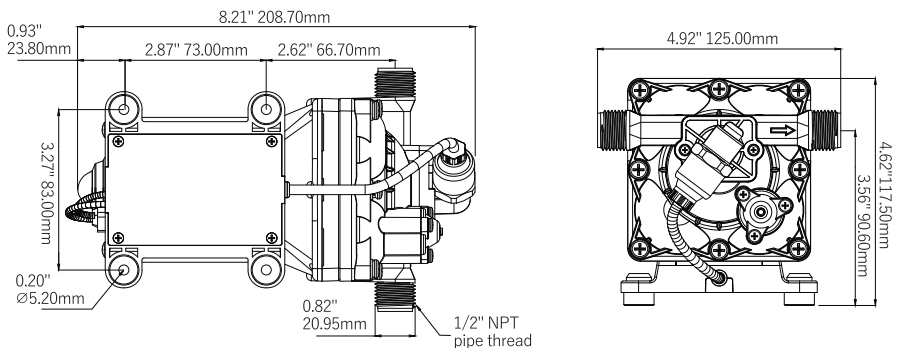

DIMENSIONS
