The 20A Series mini water Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.
item no.:
CF-20Alead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
FOBprice range:
1-99/7$color:
BLACKMOQ:
50pcs12V/24V DC MINI agriculture water sprayer pump 80PSI

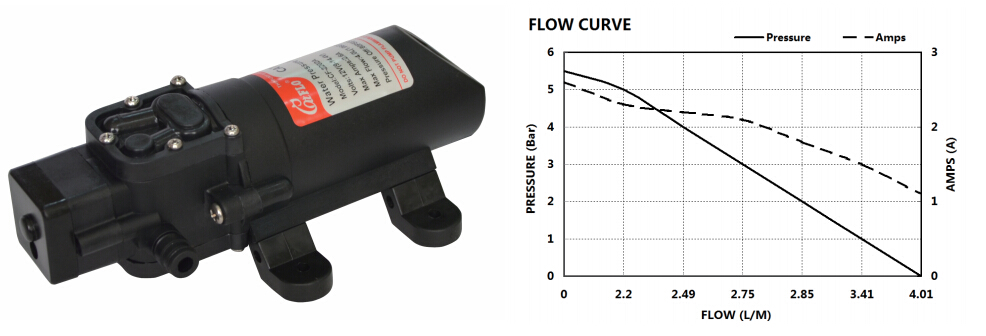

The high pressure dc water pumps are self-priming and can be run dry without harm. It provides up to 1.2 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8"(10 mm) outlets at any one time. This self-priming water pump can lift water to your house roof easily. This compact automatic demand water system pump has a built-in pressure switch, it automatically turns the pump off when pressure builds up such as turning off the tap and it will automatically turn back on when you turn the tap back on. There is an indicating arrow on the pump body to direct the water , and it is just directs to the outlet water side.
This pump uses a DC 24V power pressure washer, a washing car / house veranda / bathroom / kitchen / air conditioning unit heat sink /garden watering / greenhouse spray / floor / windows / agricultural spray / family carrying water lift, etc. the most suitable and most convenient portable device.
pressure switch controlled or by-pass controlled.
For the power controlled you can choose pump
without pressure switch or by-pass.
TYPICAL APPLICATIONS
Model
Voltage
Open flow
(LPM/GPM)
Pressure off
(PSI/BAR)
Amp Draw
(A)
CF-2202A
12V
4.0/1.1
80/5.5
2.6
CF-2402A
24V
4.0/1.1
80/5.5
1.6
Inner box(mm)
N.W/G.W(kg)
200x115x78
0.62/0.70
200x115x78
0.62/0.70

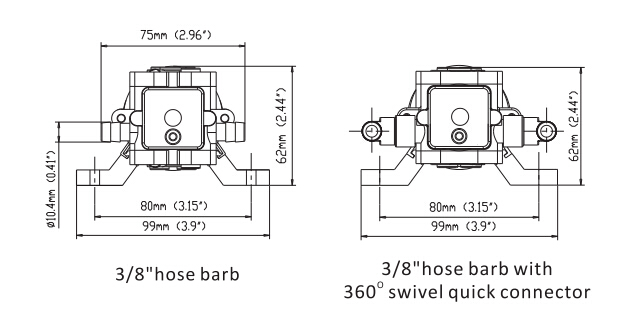

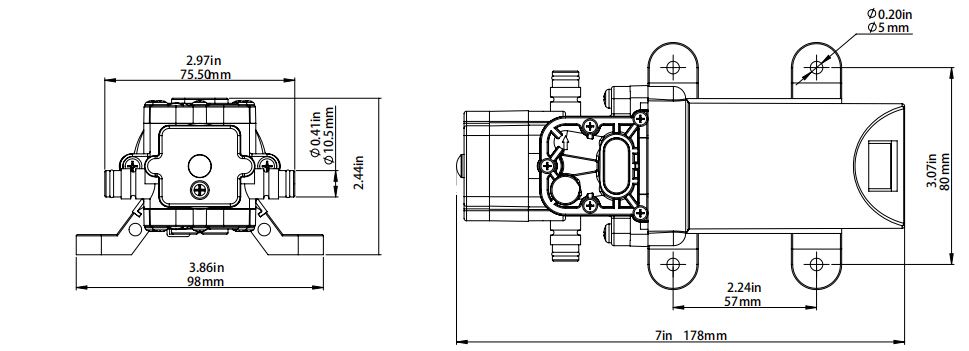

DIMENSIONS
Unit pump weight(N.W/G.W)
0.62kg/0.7KGS
Unit size
200*115*78mm
Mater carton size
58*37.5*38cm
Mater carton quantity
50pcs
Mater carton weight
40kgs
