12V 24V DC Sprayer Pump DC Power Diaphragm Water Pump

12V 24V DC Sprayer Pump DC Power Diaphragm Water Pump

This DC power diaphragm water pump is widely used in household water booster and car wash, sea water desalination for ship, also for water purification system, filter, spray equipment, general industrial equipment, chemical metering, hygienic, pollution control, printing.

  • item no.:

    DP60-DP170
  • product orgin:

    FUJIAN
  • payment:

    TT LC
  • color:

    BLACK
  • MOQ:

    10
products details

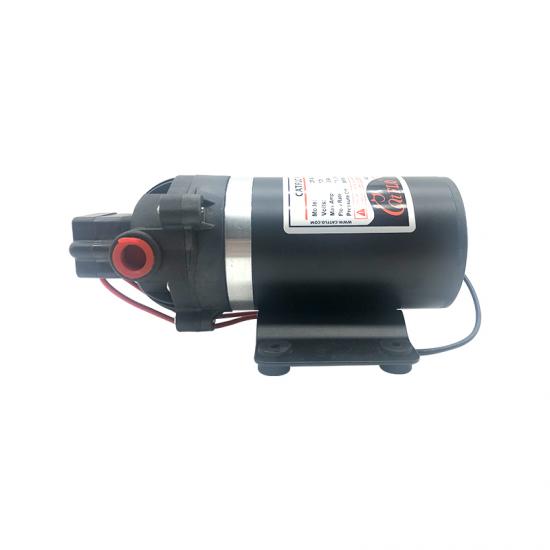

12V 24V DC Sprayer Pump DC Power Diaphragm Water Pump


This dc portable diaphragm water pump is a direct current pump. 12 volt water pump for sprayer has the advantages of Low noise, corrosion resistance, high pressure, easy dismantling, excellent selfpriming 5 m(16.4ft) and safe low voltage, ensures personal safety. Built-in pressure switch to protect sprayer pumps 12 volt running from the damage.


Specification

PUMP

Type

3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

6 feet (1.8 m) suction lift

Pressure off

Shut-off Pressure60 PSI :45 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI :85 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure120 PSI :105 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure160 PSI :145 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure170 PSI :155 PSI ±5 PSI (±0.3 bar)


Inlet/Outlet Ports

3/8"-18 FNPT

Valve

EPDM

Wire Connections

2-Pin/Leads

MOTOR

Leads

16 AWG, 13" (33 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent/continuous

Max.Amp Draw

10.8A



Features and Benefits

  • Thread connections with multiple fittings allow connection to any outlet
  • DC powered water pump provides reliable performance in moderate water flow,high pressure applications.
  • Run smooth and quietly
  • sprayer water pump Can run dry without damage
  • Iron and rubber feet for for noise reduction from vibration
  • Compact design and heavy duty demand switch
  • Adjustable pressure switch from 60psi-170psi for OEM service

Typical Application

Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.


Standard Pump Configurations

Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

AMP Draw(A)

DP-60

12

4.6/1.2

60/4.2

7.0

DP-60B

24

4.6/1.2

60/4.2

4.0

DP-80

12

5.5/1.5

80/5.5

8.0

DP-100

12

5.5/1.5

100/6.9

9.0

DP-120

12

5.5/1.5

120/8.3

9.5

DP-120B

24

5.5/1.5

120/8.3

4.5

DP-160

12

5.5/1.5

160/11.0

10.5

DP-160B

24

5.5/1.5

160/11.0

4.2

DP-170

12

5.5/1.5

170/11.8

10.8

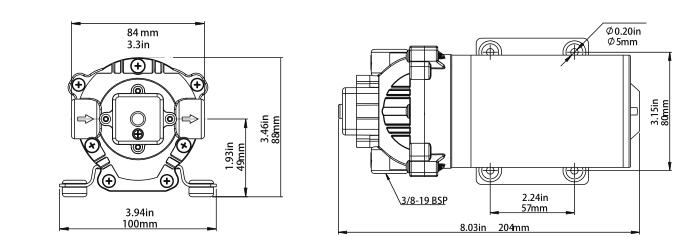

Dimension

sprayer water pump



Details

Item

Description

Quantity

A

Pump head assembly

1

B

Valve assembly

1

C

Diaphragm assembly

1

D

Motor assembly

1

1

Pressure switch

1

2

Diaphragm of pressure switch

1

3

Pump head

1

4

Diaphragm

1

5

Rubber feet

1

6

Iron base plate

1

7

Motor


Shipping information

Unit pump weight(N.W/G.W)

1.9/2.1kg  2.4/2.65

Unit size

260*120*100mm

Mater carton size

63*29*23.5cm

Mater carton quantity

10pcs

Mater carton weight

27kgs

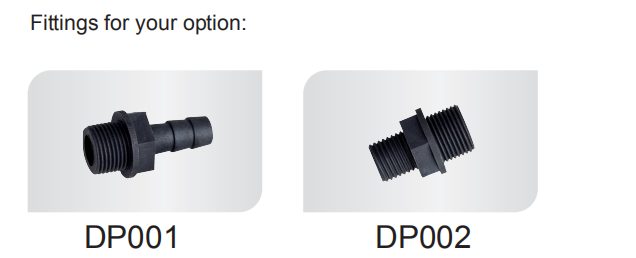

Fittings for your option






Lead Time

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
