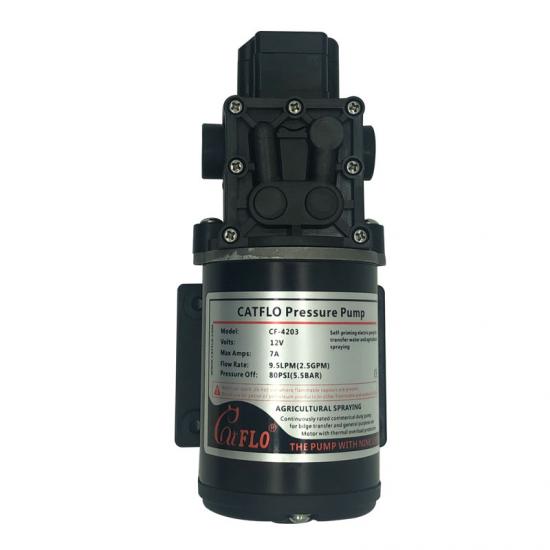

CF-40 Series High Pressure DC Electric Diaphragm Pump

CF-40 Series High Pressure DC Electric Diaphragm Pump

CF-40 Series high pressure pumps are easy to install, service and winterize. Perfect for portable car wash machine, carpet clear machine,sweeper and agriculture sprayer etc.

  • item no.:

    CF-40 Series
  • product orgin:

    FUJIAN
  • payment:

    TT LC
  • color:

    BLACK
  • MOQ:

    10
products details

CF-40 Series High Pressure DC Electric Diaphragm Pump

The CF-40 Series pumps are provide reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install, service and winterize.


Specification

Open Flow
9.5LPM (1.8GPM)
Max Pressure
100PSI (7.0BAR)
Motor Voltage
12V/24VDC
Control type
Switch & By pass
Housing Material
Nylon/Polypropylene
Valves/Seals Material
EPDM/VITION
Wire Connection
2-PIN Leads
Diaphragm
Santoprene


Features and Benefits

  • Thread connections with multiple fittings allow connection to any outlet
  • It provides reliable performance in moderate water flow,high pressure applications.
  • 2 Chamber positive displacement diaphragm pump for smooth and quiet operation.
  • Intermittent duty,The continuous working time will be different under different pressure
  • Can run dry without damage
  • Iron and rubber feet for for noise reduction from vibration
  • Compact design and heavy duty demand switch
  • Adjustable pressure switch from 60psi-170psi for OEM service
  • Pump can be with:pressure switch controlled or by-pass controlled. For the power controlled you can choose pump without pressure switch or by-pass.

Typical Application

Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.

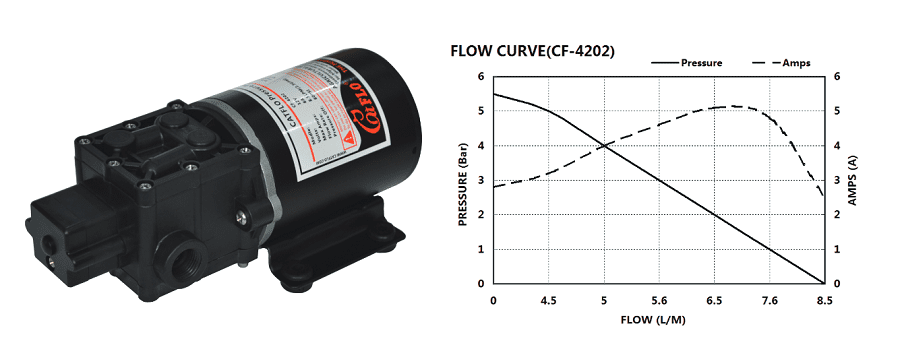

Standard Pump Configurations

Model Volt (V) Flow(lpm/gpm) Pressure off (psi/bar) Amp draw (A) Inner box(mm) N.W/G.W(kg)
CF-4201 12 7.5/1.2 100/7.0 7.0 265x135x105 1.80/2.00
CF-4401 24 7.5/1.2 100/7.0 4.0 265x135x105 1.80/2.00
CF-4202 12 8.5/1.6 80/5.5 7.0 265x135x105 1.80/2.00
CF-4402 24 8.5/1.6 80/5.5 4.0 265x135x105 1.80/2.00
CF-4203 12 9.5/1.8 80/5.5 7.0 265x135x105 1.80/2.00
CF-4403 24 9.5/1.8 80/5.5 4.0 265x135x105 1.80/2.00

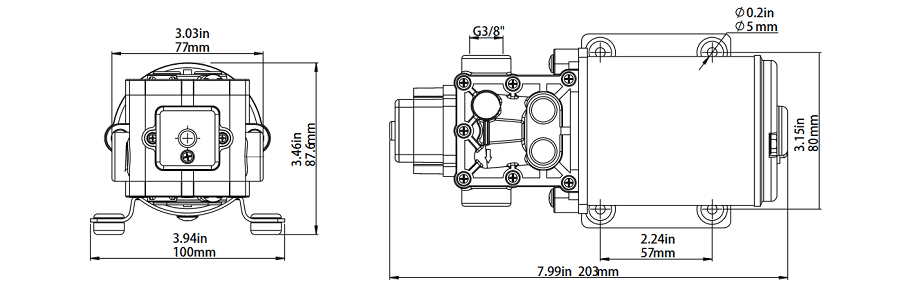

Dimension

Fittings for your option



Shipping information


Lead Time

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
