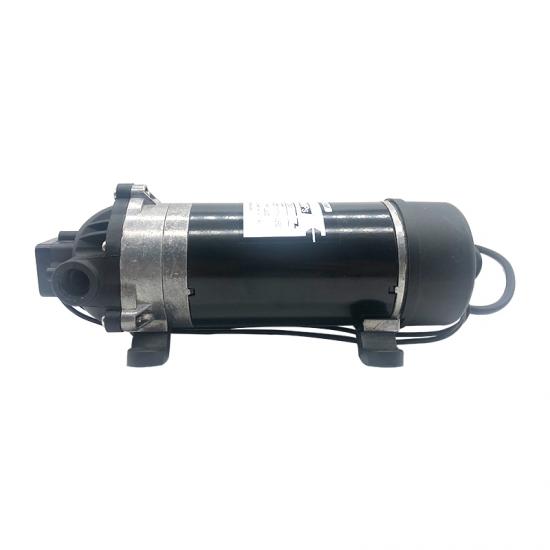

DP Series AC sprayer pump high pressure pump 220V

DP Series AC sprayer pump high pressure pump 220V

DP series AC high pressure pump has extreme chemical capability and goes beyond the normal call of duty with many other additives as well.

  • item no.:

    DP-120M-160M
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT LC
  • color:

    BLACK
products details

DP Series AC sprayer pump high pressure pump 220V


The adjustable range of AC sprayer pump is 60psi-170psi. The DP Series 220V AC High Pressure Pump is the ideal solutions for  Sprayers and many other transfer and dispensing applications. agriculture sprayer pumps are easy to install, service and winterize.



Specification

PUMP

Type

3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

6 feet (1.8 m) suction lift

Open Flow
5.5LPM (1.5GPM)

Pressure off

Shut-off Pressure120 PSI :105 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure160 PSI :145 PSI ±5 PSI (±0.3 bar)

Max Pressure
170PSI (11.8BAR)

Inlet/Outlet Ports

3/8"-18 FNPT

Housing Material
Nylon/Polypropylene

Valve

EPDM

Wire Connections

2-Pin/Leads

Diaphragm
Santoprene


MOTOR

Leads

16 AWG, 13" (33 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent/continuous

Max.Amp Draw

0.55A

Voltage
12V/24VDC



Features and Benefits
  • 3 Chamber positive displacement diaphragm pump for smooth and quiet operation
  • Duty cycle: Intermittent ,The continuous working time will be different under different pressure
  • 1 Year Warranty
  • can Run dry without damage
  • Iron and rubber feet for for noise reduction from vibration
  • Compact design and heavy duty demand switch
  • Adjustable pressure switch from 60psi-170psi for OEM service
  • Pump can be with: pressure switch controlled or by-pass controlled. For the power controlled you can choose pump without pressure switch or by-pass.
  • It provides reliable performance in moderate water flow,high pressure applications.

Typical Application

Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.

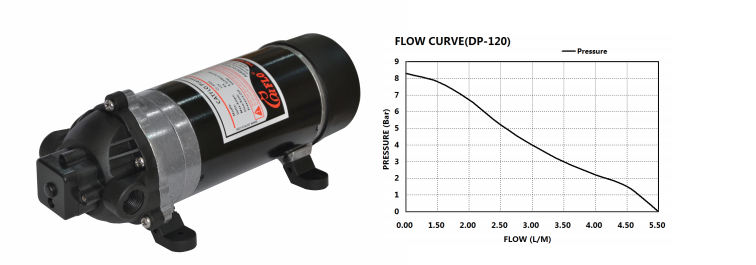

PUMP CONFIGURATIONS

Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

AMP Draw(A)

DP-120M

220

5.5/1.5

120/8.3

0.5

DP-160M

220

5.5/1.5

160/11.8

0.55

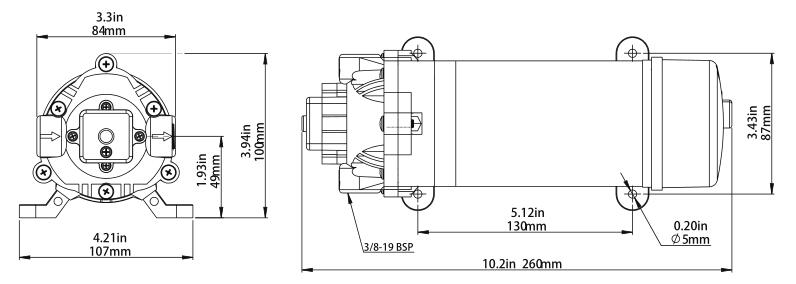

Dimension



Shipping information

Unit pump weight(N.W/G.W)

2.85/3.1

Unit size

335*120*105mm

Mater carton size

64*36*22.5cm

Mater carton quantity

10pcs

Mater carton weight

31.5kgs
