The catflo CF-2202B mini diaphragm water pump is compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.
item no.:
CF-2202Blead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
BLACKMini DC Diaphragm Pump 12V/24V 4.0LPM 80PSI
The micro electric diaphragm pump is self-priming and can be run dry without harm. It provides up to 1.3 gallons per minute. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed,also can do bypass system model.
This series micro electric diaphragm water pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfect for water heater shower, caravans, RV, knapsack sprayer) , use it with fresh or salt water or other liquid with weak acid&alkaline is ok.
|
Type |
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Open Flow |
4.0LPM (1.2GPM) |
|
Max Pressure |
80PSI (5.5BAR) |
|
Motor Voltage |
12V/24VDC |
|
Control type |
Switch & By pass |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Housing Material |
Nylon / Polypropylene |
|
Valves / Seals Material |
EPDM/VITION |
|
Wire Connection |
2-PIN Leads |
|
Diaphragm |
Santoprene |
Pump can be with: pressure switch controlled or by-pass controlled. For the power controlled you can choose pump without pressure switch or by-pass.
Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.
Standard Pump Configurations
|
Model |
Voltage(V) |
Open flow(LPM/GPM) |
Pressure off(psi/bar) |
AMP Draw(A) |
Inner box(mm) |
N.W/G.W(kg) |
|
CF-2202B |
12 |
4.0/1.1 |
80/5.5 |
2.6 |
200X115X78 |
0.62/0.70 |
|
Unit pump weight(N.W/G.W) |
0.62kg/0.7KGS |
|

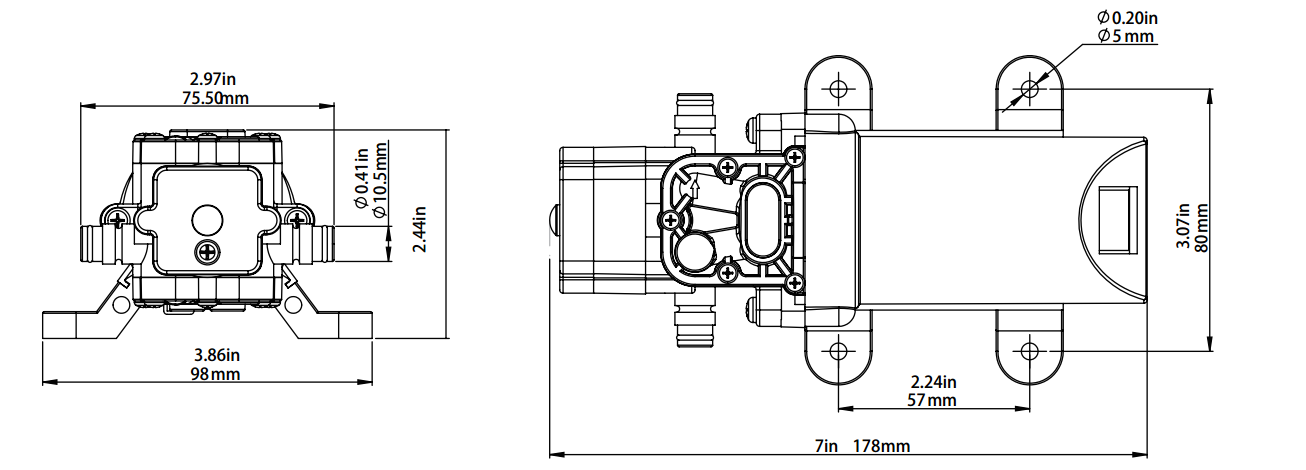

Unit size |
200*115*78mm |
|
Mater carton size |
58*37.5*38cm |
|
Mater carton quantity |
50pcs |
|
Mater carton weight |
40kgs |
