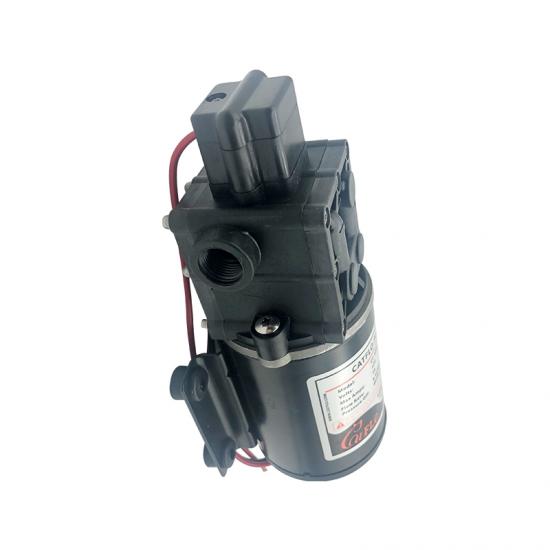

CF-400 12V 24V High Flow Diaphragm Water Pump Washdown Pump

CF-400 12V 24V High Flow Diaphragm Water Pump Washdown Pump

Perfect for caravans, boats, motorbikes, trucks and camping. Use it with fresh or salt water with your  deck wash or to run your toilet or shower. These pumps automatically turn themselves on and off when you turn the tap on and off.

  • item no.:

    CF-400
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
products details

CF-400 12V 24V High Flow Diaphragm Water Pump Washdown Pump

The12 volt water pressure pump is equipped with an automatic pressure switch control that automatically opens and closes when you open and close the nozzle. In addition, the pump has built-in thermal overload protection, and when the motor overheats, the pump will automatically stop running. Once the temperature has dropped to an acceptable range, the pump will automatically restart.
The 12v water pump is designed for intermittent use with a duty cycle of 30 minutes and is suitable for fresh or salt water. Ideal for cleaning boats, fish tanks, anchor chains, beacon stations and boats. It can also be used to clean ships, RVs and leisure decks.



Specification


Max Flow rate
18.5LPM ( 4.9gpm)
Max Pressure
40PSI (2.8BAR)
Motor
DC/AC
Control type
Switch & By pass
Housing Material
Nylon/Polypropylene
Valves/Seals Material
EPDM/VITION
Wire Connection
2-PIN Leads
Diaphragm
Santoprene


Features
  • Pressure switch protection: With fully automatic ON/OFF control
  • Anti-Corrosive
  • Intermittent duty,The continuous working time will be different under different pressure
  • can Run dry without damage
  • Self-Priming
  • Silent running
  • Hose connection with multiple fittings allow connection to any outlet
  • Adjustable pressure switch for OEM when needed
  • 3/4in. quick-connect ports for easy changes

TYPICAL APPLICATIONS

Yacht/RV/Caravan pressurized water system,Sprayer fixture(ATV sprayer, electric sprayer),Clean machine, Humidifier, Water purification, Medical apparatus,Food beverage filling and liquid transfer,Any other pressurization system


PUMP

Type

4Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

 (2.0 m) suction lift

Pressure off

Shut-off Pressure 40PSI

Inlet/Outlet Ports

3/8" (10 mm) hose barb

Valve

EPDM

Wire connect

2-Pin/Leads


MOTOR

Leads

18 AWG, 14" (35 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent

Max.Amp Draw

10.5A


STANDARD PUMP CONFIGURATIONS

Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

Amp draw(A)

Inner box(mm)

N.W/G.W(kg)

CF-400

12

18.5/4.9

40/2.8

10.5

375×120×105

2.50/2.80

CF-401

24

18.5/4.9

40/2.8

6.0

375×120×105

2.50/2.80

CF-402

115

18.5/4.9

40/2.8

1.5

375×120×105

2.90/3.20

CF-403

220

18.5/4.9

40/2.8

0.8

375×120×105

2.90/3.20


DIMENSIONS



Fittings for your option


Shipping information

Unit pump weight(N.W/G.W)

2.2kg/2.5KGS

Unit size

340*120*105mm

Mater carton size

64*36*22.5cm

Mater carton quantity

10pcs

Mater carton weight

30.5kgs
