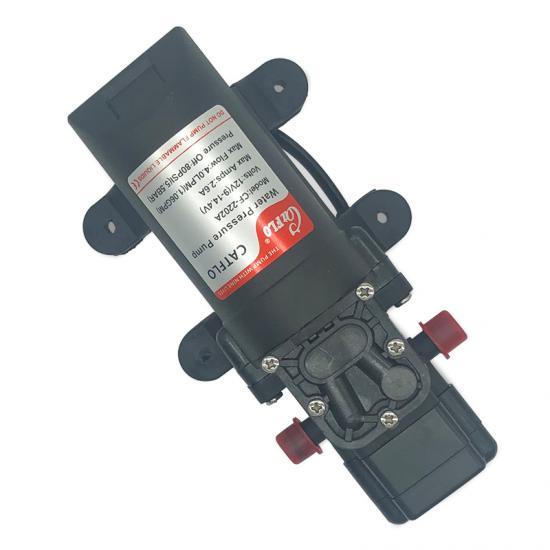

Mini DC Diaphragm Pump 12V/24V 4.0LPM 80PSI

Mini DC Diaphragm Pump 12V/24V 4.0LPM 80PSI

The CATFLO 20A series Mini pumps are your best choice when looking for a high performance diaphragm pump at an economical cost.

  • item no.:

    CF-2202A
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
products details

Mini DC Diaphragm Pump 12V/24V 4.0LPM 80PSI


Simple but highly versatile, the 2 chamber diaphragm pump is perfect for fluid handing applications such as purification, light industrial, food and beverage, agricultural, and automotive. Additionally, it's packed with features and capabilities you'll never find in other pumps at this price point. The 20A series of powerful micro diaphragm pump is self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling.


Specification

Type
2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Open Flow
4.0LPM (1.2GPM)
Max Pressure
80PSI (5.5BAR)
Motor Voltage
12V/24VDC
Control type
Switch & By pass
Max Recommended Temperature
60° C (140° F)
Priming Capabilities
6 feet (1.8 m) suction lift
Housing Material
Nylon / Polypropylene
Valves / Seals Material
EPDM/VITION
Wire Connection
2-PIN Leads
Diaphragm
Santoprene


Features and Benefits
  • 2 Chamber positive displacement diaphragm pump for smooth and quiet operation
  • Self-priming
  • Intermittent duty,The continuous working time will be different under different pressure
  • Industry standard mounting pattern
  • 1 Year Warranty
  • rubber feet for noise reduction from vibration
  • Adjustable pressure switch for OEM when needed
  • Hose connection with multiple fittings allow connection to any outlet
  • can Run dry without damage
  • Pump can be with: pressure switch controlled or by-pass controlled. For the power controlled you can choose pump without pressure switch or by-pass.


Typical Application

Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.


Standard Pump Configurations

Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

AMP Draw(A)

Inner box(mm)
N.W/G.W(kg)

CF-2202A

12

4.0/1.1

80/5.5

2.6

200X115X78
0.62/0.70

CF-2402A

24

4.0/1.1

80/5.5

1.6

200X115X78
0.62/0.70



Dimension









Fittings for your option



Shipping Information

Unit pump weight(N.W/G.W)

0.62kg/0.7KGS

Unit size

200*115*78mm

Mater carton size

58*37.5*38cm

Mater carton quantity

50pcs

Mater carton weight

40kgs
