4 Chamber Diaphragm Pump 11.3GPM 12-24V CFDP-4204-01

4 Chamber Diaphragm Pump 11.3GPM 12-24V CFDP-4204-01

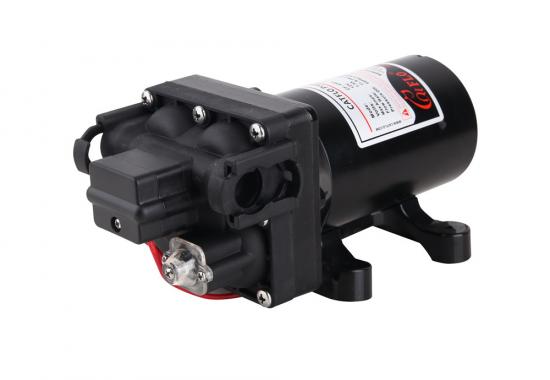

In front of the motor is a valve assembly containing four valve pump chambers. Each valve chamber has a diaphragmbehind it in the lower pump housing.

products details

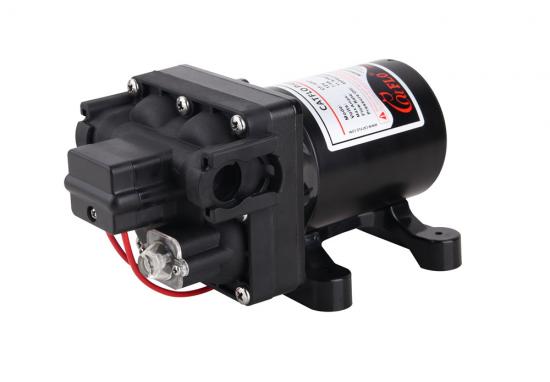

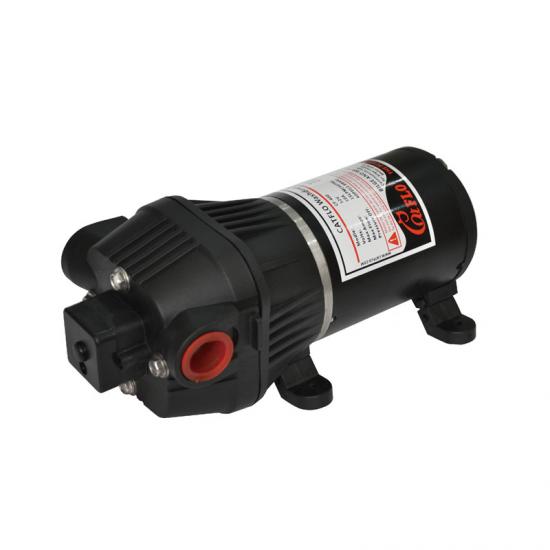

4 Chamber Diaphragm Pump 11.3GPM 12-24V CFDP-4204-01



A fully assembled pressure set that simplifies the installation of water pressure systems for both the professional and amateur installer. The set consists of a 4 chamber diaphragm pump, strainer and pre-pressurized accumulator tank with quick connect electrical connections on a Plate mounted board. Serves 3 or more 1/2" (13mm) outlets. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet.

The volume of flow is determined by several factors including: the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity.



Product display



Features
  • Pressure switch protection: With fully automatic ON/OFF control
  • Anti-Corrosive
  • Intermittent duty,The continuous working time will be different under different pressure
  • can Run dry without damage
  • Self-Priming
  • Silent running
  • Hose connection with multiple fittings allow connection to any outlet
  • Adjustable pressure switch for OEM when needed
  • 3/4in. quick-connect ports for easy changes

TYPICAL APPLICATIONS

Yacht/RV/Caravan pressurized water system,Sprayer fixture(ATV sprayer, electric sprayer),Clean machine, Humidifier, Water purification, Medical apparatus,Food beverage filling and liquid transfer,Any other pressurization system


PUMP

Type

4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

 (2.0 m) suction lift

Pressure off

Shut-off Pressure 40PSI

Inlet/Outlet Ports

3/8" (10 mm) hose barb

Valve

EPDM

Wire connect

2-Pin/Leads


MOTOR

Leads

18 AWG, 14" (35 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent

Max.Amp Draw

10.5A


STANDARD PUMP CONFIGURATIONS

Model Open flow(GPM) Volts(V) Max Draw (A) Inch PSI Power Connection Inner box (cm)
CFDP-4204-01 11.3 12 8.5 1/2"Barb Quick Attach 55 2-Pin/Leads 26.5x14.2x13
CFDP-4404-01 11.3 24 4.6 55
CFDP-4205-01 11.3 12 12.5 100
CFDP-4405-01 11.3 24 6.3 100

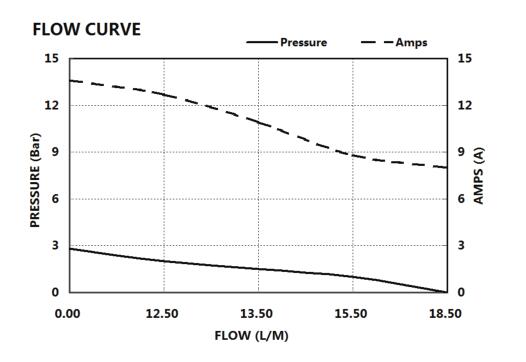

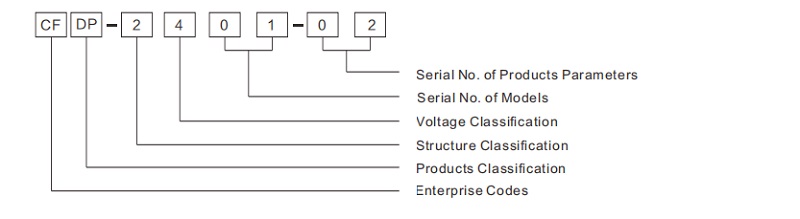

Explanation of Program

CF: Enterprise Codes of CatFlo

DP: Products Classification:Pressure Pump DP,Bilge Pump BP,Gear Pump GP,Impeller Pump IP,etc

2: Structure Classification:Single Cavity 1.two Cavity 2.three Cavity 3.Others

4: Voltage Classification:12V in 2,24V in 4,AC 220V in 1,AC 110V in 3

01: Serial No. of Model:Classification and Structure same but different Serial No. of Models (Food all in 00)

02: Serial No. of Products Parameters:Serial No. of Products Flow and Pressure

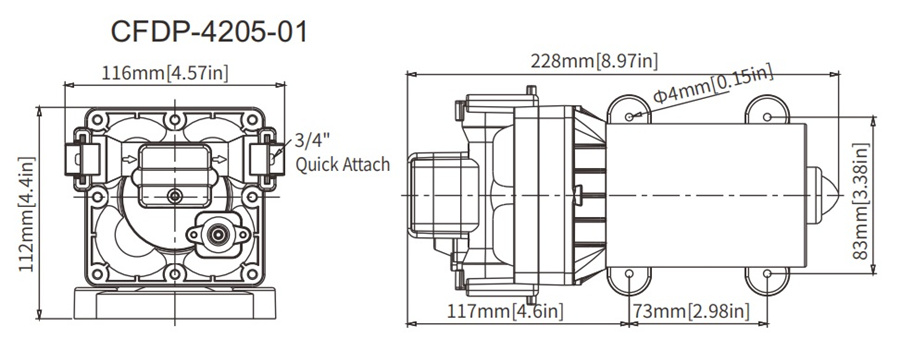

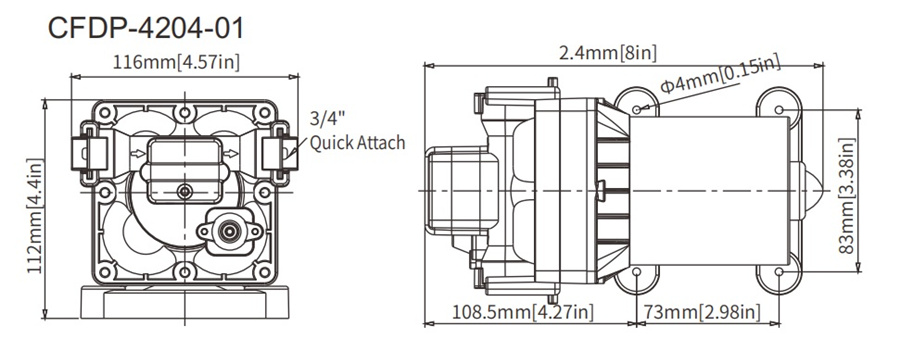

DIMENSIONS

A Series

B Series

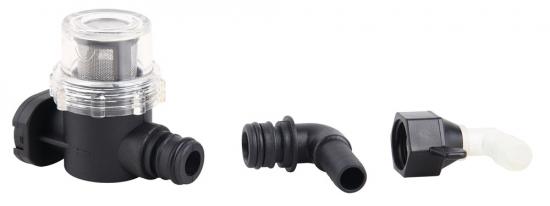

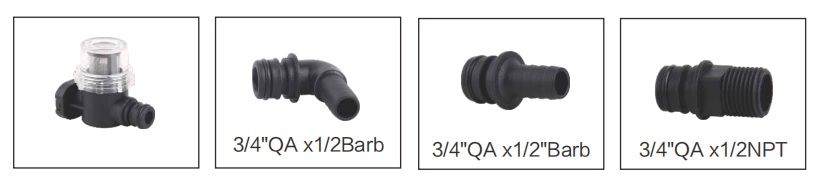

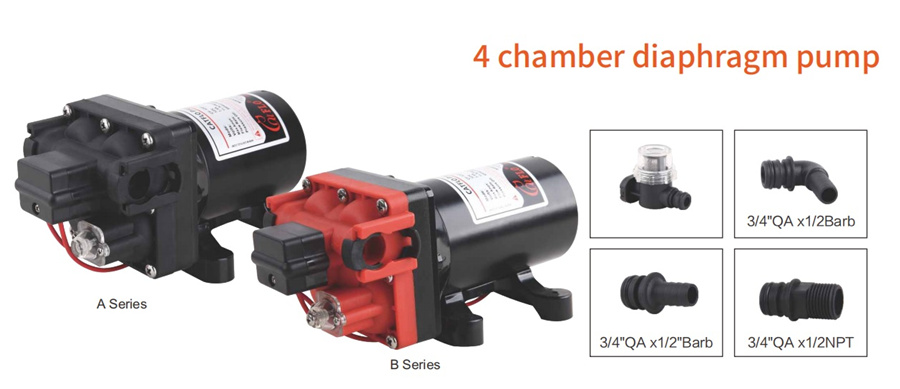

Fittings for your option


Shipping information

Unit pump weight(N.W/G.W)

2.2kg/2.5KGS

Unit size

340*120*105mm

Mater carton size

64*36*22.5cm

Mater carton quantity

10pcs

Mater carton weight

30.5kgs
