CF-30 Series DC Diaphragm water pump 12V/24V 4.5-6.0LPM 80-100PSI

CF-30 Series DC Diaphragm water pump 12V/24V 4.5-6.0LPM 80-100PSI

CF-30 series diaphragm water pumps are designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.

  • item no.:

    CF-30
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
  • MOQ:

    10
products details

CF-30 Series DC Diaphragm pump 12V/24V 4.5-6.0LPM 80-100PSI

CF-30 series 12v 100 psi water pump is designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. Diaphragm water pumps are self-priming, can be run dry without harm and It provides up to 6Liters per minute. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.



Features and Benefits

l  smooth and quiet operation

l  Self-priming

l  Intermittent duty.

l  Industry standard mounting pattern

l 1 Year Warranty

l rubber feet for noise reduction from vibration

l Adjustable pressure for OEM when needed

l Hose connection with multiple fittings allow connection to any outlet




TYPICAL APPLICATIONS

Marine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water System.



PUMP

Type

2 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

6 feet (1.8 m) suction lift

Pressure off

Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)

Inlet/Outlet Ports

3/8" (10 mm) hose barb

Valve

EPDM

Wire connect

2-Pin/Leads


MOTOR

Leads

18 AWG, 14" (35 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent

Max.Amp Draw

5.5A




STANDARD PUMP CONFIGURATIONS


Model

Voltage(V)

Open flow(LPM/GPM)

Pressure off(psi/bar)

AMP Draw(A)

CF-3201

12

4.5/1.2

100/7.0

4.5

CF-3401

24

4.5/1.2

100/7.0

2.5

CF-3202

12

5.8/1.6

80/5.5

5.5

CF-3402

24

5.8/1.6

80/5.5

3.0

CF-3203

12

5.2/1.4

100/7.0

5.0

CF-3403

24

5.2/1.4

100/7.0

3.0

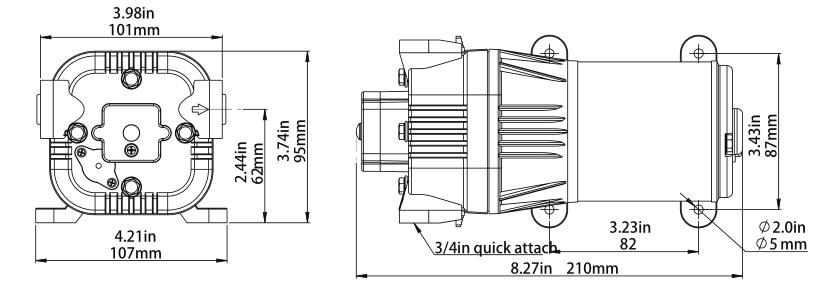

DIMENSIONS

DETAILS


l    Housing Material:Nylon/Polypropylene

l Valves/Seals Material:EPDM/VITION

l Wire Connection:2-PIN Leads

l Diaphragm


Shipping information

Unit pump weight(N.W/G.W)

1.2kg/1.3KGS

Unit size

185*110*65mm

Mater carton size

56*40.5*24.5cm

Mater carton quantity

30pcs

Mater carton weight

39.5kgs
