12 Volt DC Smart Water Pump for Marine RV Automatic Demand Diaphragm Flow High Pressure Variable Speed Pump.
item no.:
ZN-55lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEFeatures and Benefits
•5 chamber diaphragm pump
• Bypass: reduces cycling • Over-voltage protection • High temperature protection • Run dry capable for normal workloads • Constant pres sure smart • Over current protection • Under-voltage protection • Self priming
• Quiet Operation
• lgnition protected
• Cryogenic protection
• Automatic: pressure sensor controlled by circuit board
•14AWG,9"(22.8cm) long Leads
TYPICAL APPLICATIONS
Used fordairy products, beverages, food, cosmetics, food additives, fine chemicals

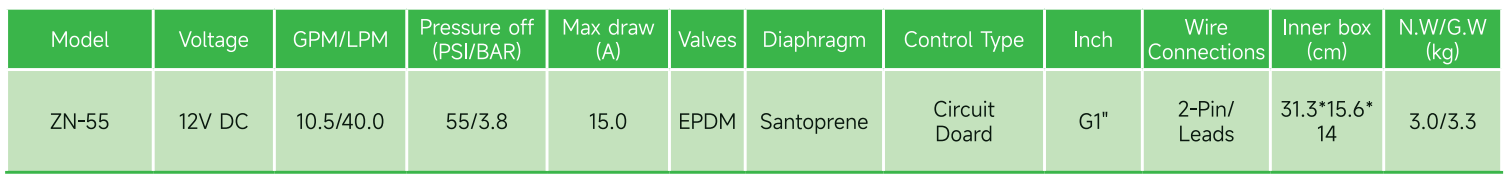

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
140° F (60° C)MAX |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
G1'' |
|
Weight |
6.6 lbs (3.0 kg) |

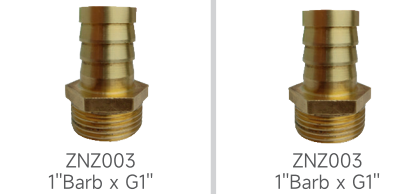

FITTINGS

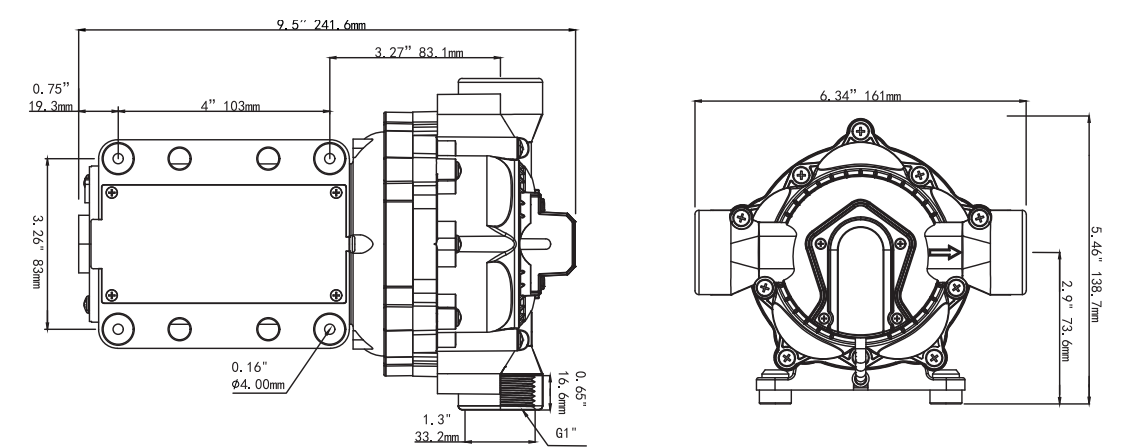

DIMENSIONS
