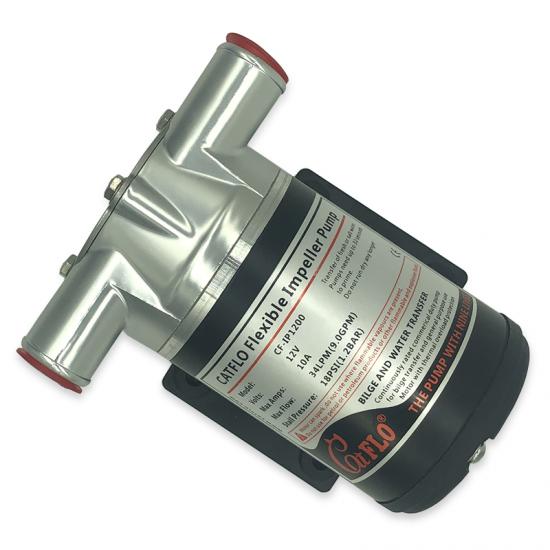

DC micro electric marine 12v brass flexible impeller pump for wash deck

DC micro electric marine 12v brass flexible impeller pump for wash deck

Self-priming electric water pumps with selflubricating flexible impeller for prolonged service life and better performance.

  • item no.:

    CF-IP1200
  • lead time:

    7-30DAYS
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT/LC
  • color:

    BLACK
  • MOQ:

    50
products details

DC micro electric marine 12v brass flexible impeller pump for wash deck


Self-priming electric pump with Super wear resistance impeller for high performance and long life. For water and salt water transfer. There are numerous fields of applications for the pump, however only exclusively with the allowed liquids mentioned: transfer of water and transfer of light weight lube oils, antifreeze, etc.

REMIND:  Should be installed in a dry and ventilated position;  Must not run dry, better with bilge controller panel to avoid running dry.



Specification

Body Materials

Bronze

Impeller

Neoprene compound

Seal

Lip Type

Inlet/Outlet Ports

 Marine 8 GPM Self Priming Impeller Bilge Pump - Replaces Water Supply Chain Provider

1/2"BSP*3/4’’Barb

Voltage

12v/24v dc

Amp Draw

Max.12.0(amp)

Type

self-priming bilge pump

Mode

Cheap  8.0 GPM 12V Industrial Self-Priming bilge Pump from China

Thermally Protected,High Quality Efficient Motor

Certifications Option

CE Approval

Liquid Temperature

140°F (60°C) Max.

Priming Capabilities

3.2 feet (1 m) suction lift

Max Flow rate

30.0lpm (8.0gpm)

Temperature Limits

Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 60°C).



FEATURES

· Good flow rate, continuously rated pump

· 8.0gpm (30lpm) at 10ft (3m) total head

· Self -priming up to 4ft (1.2m) allows

· Mounting above wet bilges

· Shower debris presents no problem to this bronze bodied, flexible impeller design

· Simple design means fewer wearing parts-all user serviceable

· MARINE (ignition Protection)



APPLICATION

· Agriculture/Yacht / RV/Caravan pressurized water system

· Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)

· Cleaning machine, Humidifier, Water purification, Medical apparatus

· Any other pressurization system

· Drain water on deck and wash deck



PUMP CONFIGURATIONS


Model

Voltage(V)

Open flow(LPM/GPM)

Stall Pressure (psi/bar)

Max Draw(A)

Inner box(mm)
N.W/G.W(kg)

CF-IP1200

12

30/8.0

18/1.2

12.0

340x120x105
2.20/2.50

CF-IP2400

24

30/8.0

18/1.2

7.0

340x120x105
2.20/2.50



Dimension


Fittings for your option
