DP Series High Effective 3 chamber diaphragm pump

DP Series High Effective 3 chamber diaphragm pump

This DP series water pump with high pressure, Perfect for portable car wash machine, carpet clear machine,sweeper and agriculture sprayer etc.

  • product orgin:

    FUJIAN
  • payment:

    TT LC
  • color:

    BLACK
  • MOQ:

    10
products details

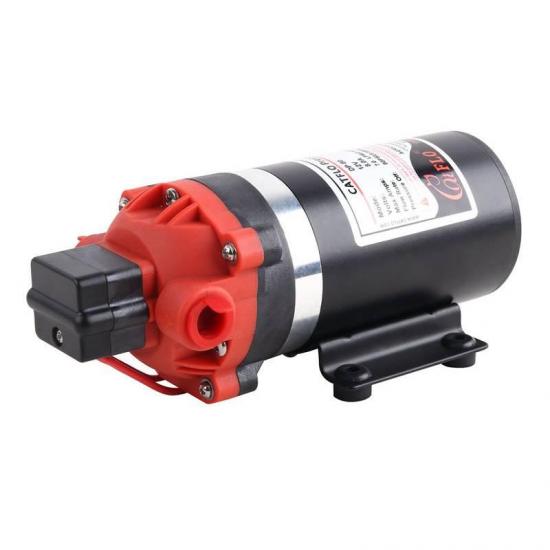

DP Series High Effective 3 chamber diaphragm pump

The DP series 3 chamber diaphragm pump is capable of continuous heavy duty and extreme workloads. Matched with high performance motor, the DP series has extreme chemical capability and goes beyond the normal call of duty with many other additives as well. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.


Specification

PUMP

Type

3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry

Control Type

pressure switch controlled or by-pass controlled

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

6 feet (1.8 m) suction lift

Pressure off

Shut-off Pressure60 PSI :45 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure 80 PSI : 65 PSI ±5 PSI (±0.3 bar)
Shut-off Pressure 100 PSI :85 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure120 PSI :105 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure160 PSI :145 PSI ±5 PSI (±0.3 bar)

Shut-off Pressure170 PSI :155 PSI ±5 PSI (±0.3 bar)


Inlet/Outlet Ports

3/8"-18 FNPT

Valve

EPDM

Wire Connections

2-Pin/Leads

MOTOR

Leads

16 AWG, 13" (33 cm) long with 2-Pin connector / Leads

Duty Cycle

Intermittent/continuous

Max.Amp Draw

10.8A



Features and Benefits

  • Thread connections with multiple fittings allow connection to any outlet
  • It provides reliable performance in moderate water flow,high pressure applications.
  • Run smooth and quietly
  • Can run dry without damage
  • Iron and rubber feet for for noise reduction from vibration
  • Compact design and heavy duty demand switch
  • Adjustable pressure switch from 60psi-160psi for OEM service

Typical Application

Marine, RV, Agricultural Spraying, General Industrial, Filtration, Beverage Processing, Solar Water System, etc.


Standard Pump Configurations

Model

Volts

Open flow(LPM)

Max Draw(A)

Inch

PSI          Power Connection
Inner box

CFDP-3201-01

12

5.5

6

3/8"FNPT

60 2-Pin/Leads
26.6x12x10.5

CFDP-3401-01

24

5.5

3.1

3/8"FNPT

60 2-Pin/Leads
26.6x12x10.5

CFDP-3201-02

12

5.5

7

3/8"FNPT

80 2-Pin/Leads
26.6x12x10.5

CFDP-3401-02

24

5.5

3.7

3/8"FNPT

80 2-Pin/Leads
26.6x12x10.5

CFDP-3202-01

12

5.5

9

3/8"FNPT

100 2-Pin/Leads
26.6x12x10.5

CFDP-3402-01

24

5.5

4.6

3/8"FNPT

100 2-Pin/Leads
26.6x12x10.5

CFDP-3202-02

12

5.5

9.5

3/8"FNPT

120 2-Pin/Leads
26.6x12x10.5

CFDP-3402-0212

24

5.5

4.8

3/8"FNPT

120 2-Pin/Leads
26.6x12x10.5

CFDP-3203-01

12

5.5

10.5

3/8"FNPT

160 2-Pin/Leads
26.6x13x10.5

CFDP-3403-021

24 5.5
5.3 3/8"FNPT
160 2-Pin/Leads
26.6x13x10.5

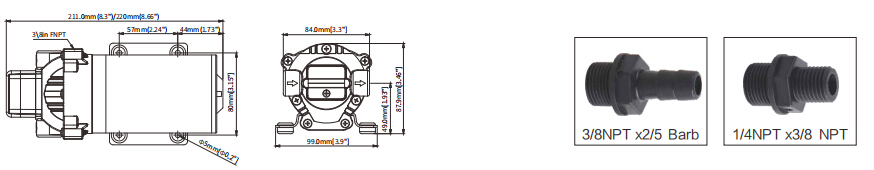

Dimension



Details

Item

Description

Quantity

A

Pump head assembly

1

B

Valve assembly

1

C

Diaphragm assembly

1

D

Motor assembly

1

1

Pressure switch

1

2

Diaphragm of pressure switch

1

3

Pump head

1

4

Diaphragm

1

5

Rubber feet

1

6

Iron base plate

1

7

Motor


Shipping information

Unit pump weight(N.W/G.W)

1.9/2.1kg  2.4/2.65

Unit size

260*120*100mm

Mater carton size

63*29*23.5cm

Mater carton quantity

10pcs

Mater carton weight

27kgs



Fittings for your option






Lead Time

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
