Hot Sale DP Series Self-Priming Diaphragm Water Pump High Pressure Factory Price Deep Well Pumping Pump

Hot Sale DP Series Self-Priming Diaphragm Water Pump High Pressure Factory Price Deep Well Pumping Pump

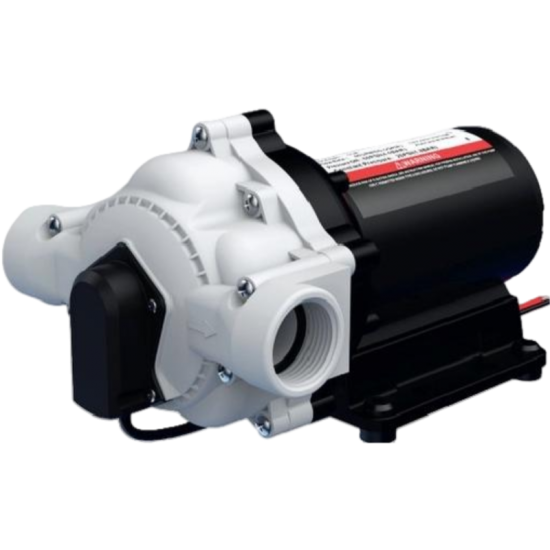

DP Series Single Stage Chinese Brand 1.5HP Electric Low Noise Clean High Pressure Booster Farm Industry Motor Water Well Pump

  • item no.:

    CFDP1-3216-01
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
  • MOQ:

    10
products details

Features and Benefits

  • Open Flow:6.0LPM(1.6GPM)
  • Max Pressure:200PSl(13.8BAR)
  • Motor Voltage:12VDC/24VDC/110VAC/220VAC
  • Run dry without damage
  • 3 Chamber positive displacement diaphragm pump for smoothand quiet operation.
  • Duty cycle: Intermittent (The continuous working time will bedifferent under different pressure)
  • Pump can be with:
  • pressure switch controlled or by-pass controlled. For the powercontrolled you can choose pump without pressure switchorby
    pass.

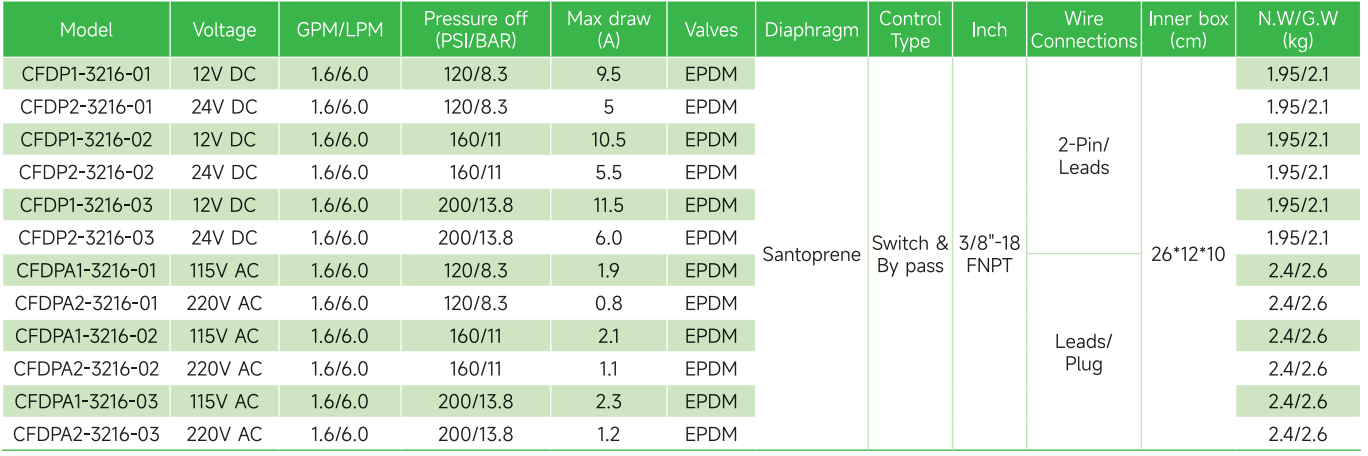

Pump Configuration

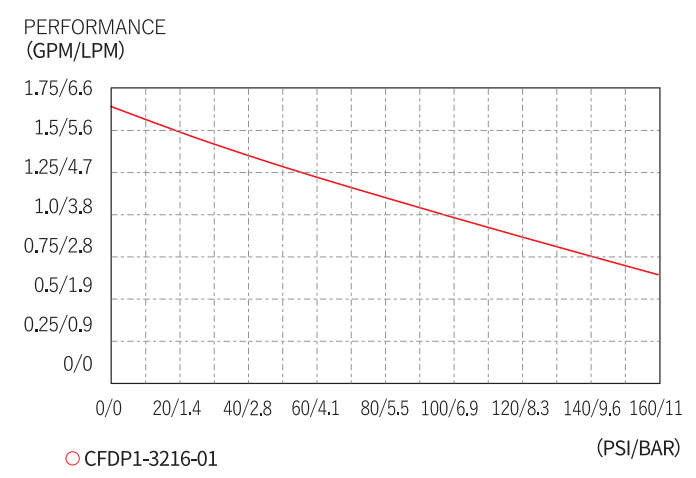

Performance

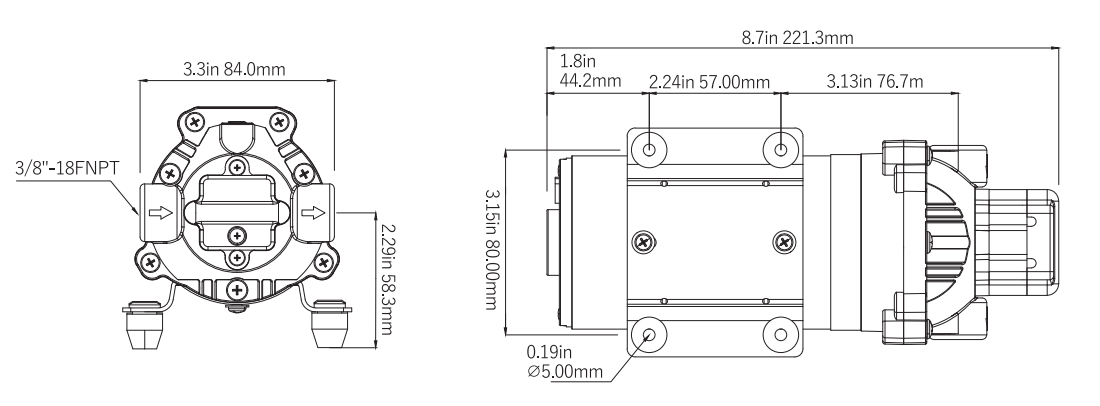

Dimension

Packing & Shipping
