High Pressure RO Booster Pump with Auto Priming Function 5-30psi Adjustable for Pure Water Machine.
item no.:
CFDP1-3112-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITE
Features and Benefits
• Open flow: 5.3LPM (1.4GPM)
• Maximum pressure: 60PSI (4.1BAR)
• Motor voltage: 12VDC/24VDC/110VAC/220VAC
• Dry run, no damage
• 3-chamber positive displacement
• And operates quietly.
• Duty cycle: Intermittent (continuous operating time varies under different pressures)
• The pump can be used with the following controls:
• Pressure switch control or bypass control. For power control, you can choose a pump without a pressure switch or
bypass.
Pressure switch control or bypass control.
For power control, you can choose
a pump without a pressure switch or bypass.
TYPICAL APPLICATIONS
Used fordairy products, beverages, food, cosmetics, food additives, fine chemicals

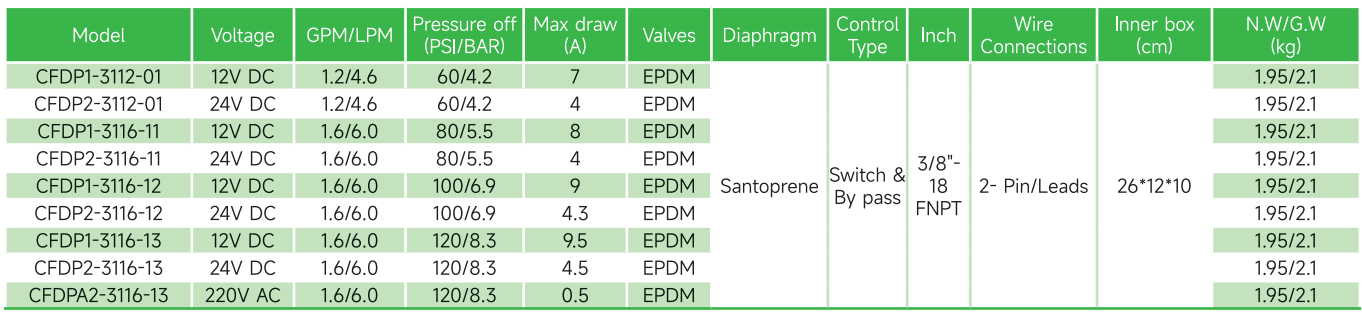

STANDARD PUMP CONFIGURATIONS

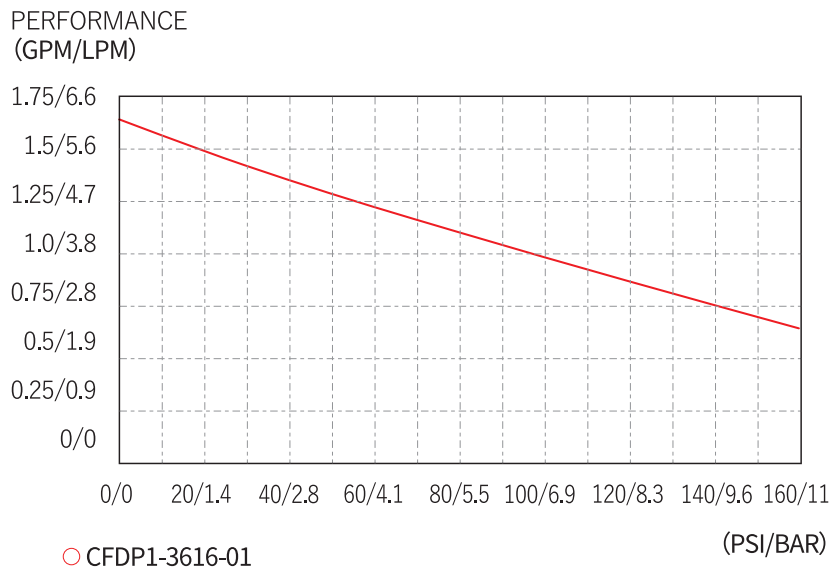

Performance

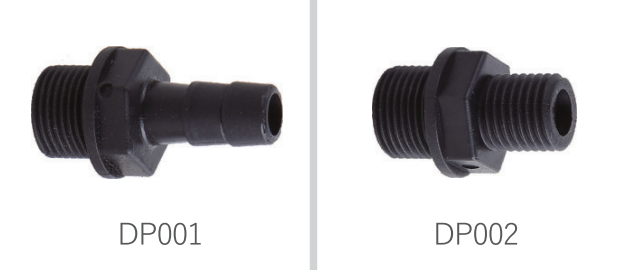

FITTINGS

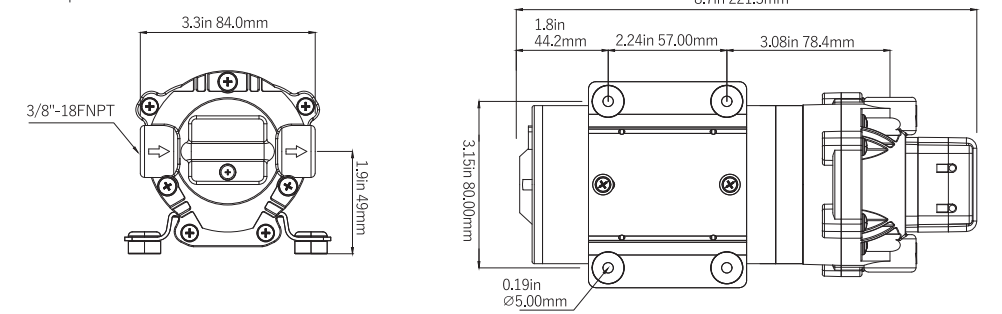

DIMENSIONS
