Brushless Dc Motor Automatic High Pressure Electric Centrifugal Water Booster Jet Pump.
item no.:
CFDP2-3616-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEFeatures and Benefits
1. Open Flow:6.0LPM(1.6GPM
2.Max Pressure:200PSl(13.8BA
3. Max Pressure:200PSl(13.8BAR)
Motor Voltage 12VDC/24VDC/110VAC/220VAC
4. 3 Chamber positive displacement diaphragm pump for smooth and quie
5. Duty cycle: Intemittent (The continuous working time will be different undel different pressure)
6.Pump can be with:
pressure switch controlled. For the power controlled you can choose pumpwithout pressure switch.

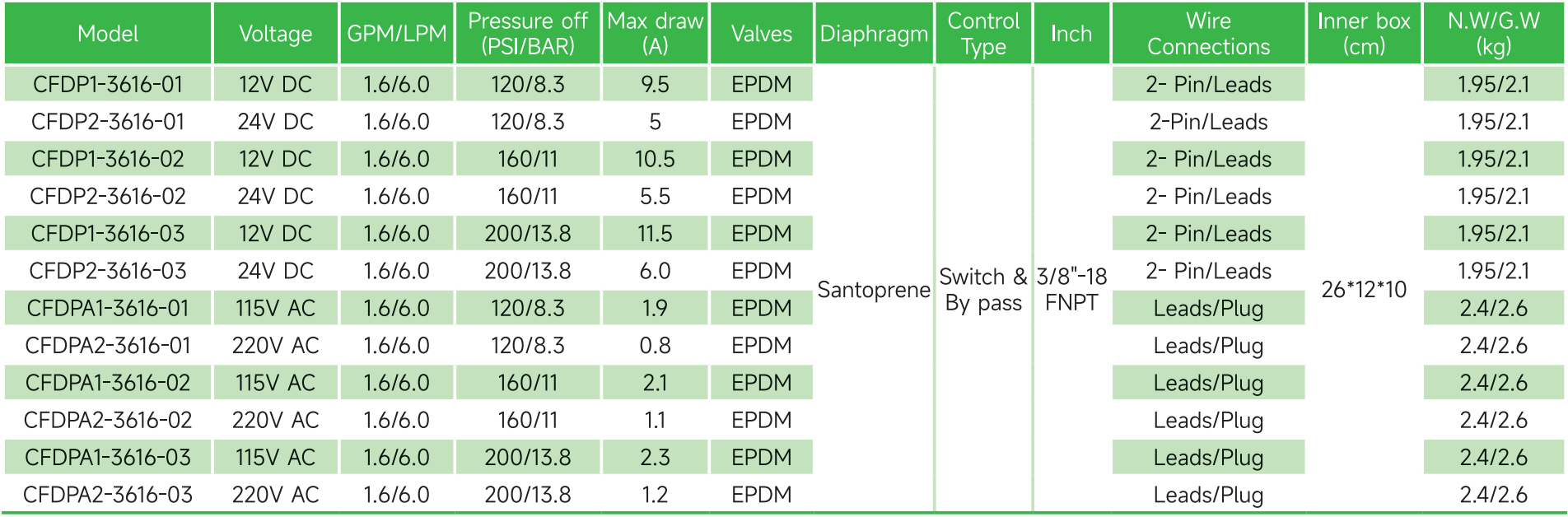

STANDARD PUMP CONFIGURATIONS

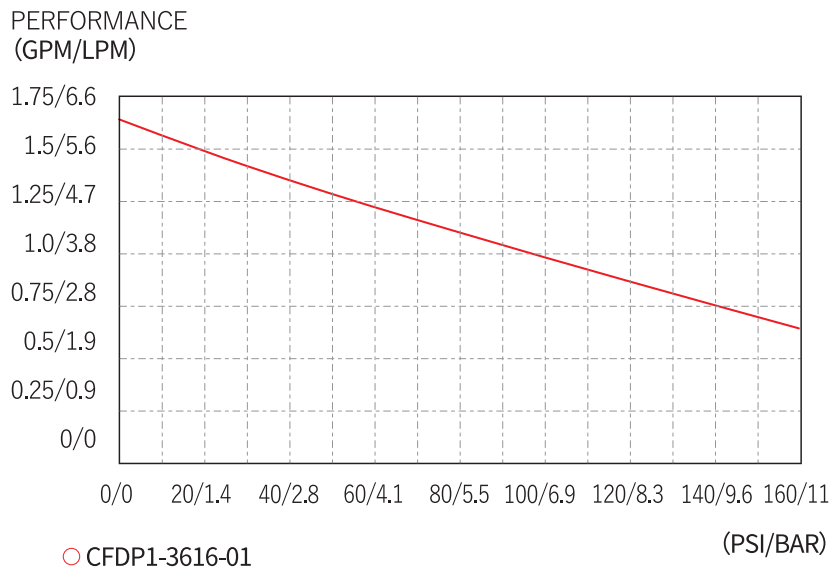

Performance

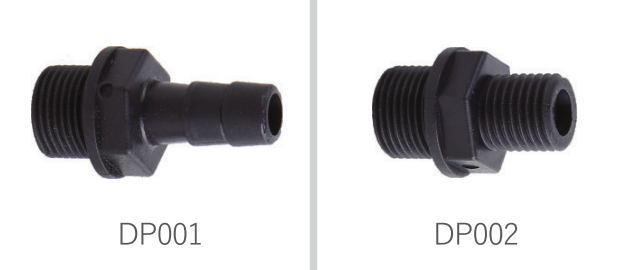

FITTINGS

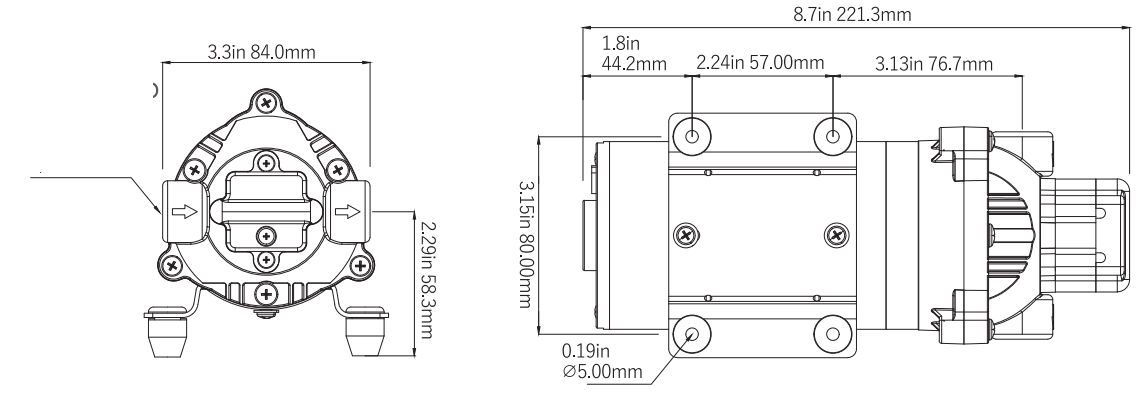

DIMENSIONS
