DC Solar Submersible Pump
home

Industrial

DC Solar Submersible Pump

12V 24V 350 GPH Non- Automatic Submersible Pump

12V 24V 350 GPH Non- Automatic Submersible Pump

A submersible pump is an air-tight sealed motor close-coupled to the pump body, preventing pump cavitation.

  • item no.:

    CFBP-0203-1
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    RED AND WHITE
  • MOQ:

    100
products details

12V 24V 350 GPH Non- Automatic Submersible Pump

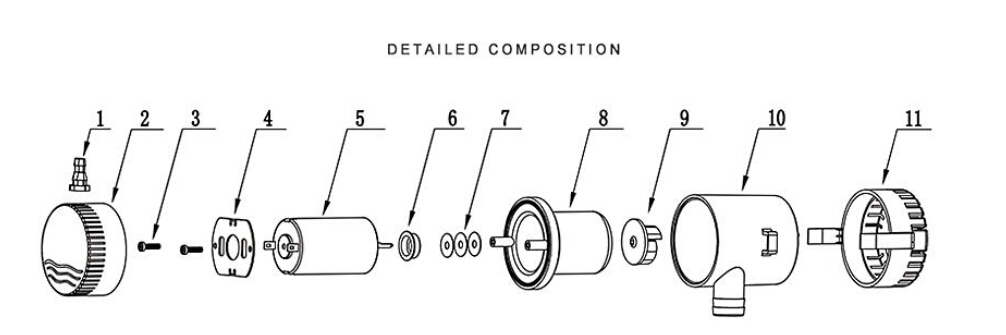

DC Submersible Pump  is made of motor and pump,the motor is consists of rotor,bearing and base;the pump body includes impeller,pump body,connections,bearing and mechanical seal.

12V DC Submersible water pump is applicable to the same voltage power of ship or irrigation etc,it is very convenient.



Specification


Features and Benefits:

  • Pump and switch are stand alone products
  • Compact, efficient, long life motors. New mercury free float switches.
  • Size: 350,500,750,1100gph in 12 and 24 volt versions.
  • Easy clean snap-lock strainer bases
  • Anti-airlock protection
  • Exclusive moisture tight seals
  • Completely submersible
  • Marine grade blocked wiring
  • Silent and vibration-less operation
Motor:
  • Compact, efficient, long life motorLeads
  • 18 AWG,1m long Leads Temperature
  • Limits
  • Duty Cycle
  • Intermittent
Pump:
  • Liquid Temperature
  • 110℉(43℃)Max.Max.
  • Priming Capabilities
  • Not needed flooded suction
  • Power
  • 3.0 amps max current draw
  • Max Pressure


Application

Marine
RV&Campers
Industrial use


Standard Pump Configurations

Model Volt (V) Flow Rate Current(A)      Inch
Max         draw (A) Wire Lead(m) Inner box(m
CFBP-0203-01 12 350
1 3\4"
1.5 3-Pin/Leads/1m 10.2X9.2X12
CFBP-0203-02 12

500

1.6

3\4"
2.5
3-Pin/Leads/1m 10.2X9.2X12

CFBP-0203-03

12
750
2.5
3\4"
3
3-Pin/Leads/1m
10.2X9.2X12

CFBP-0203-04

12
1100
3.5
1-1/8"
3.5
3-Pin/Leads/1m
10.2X9.2X12

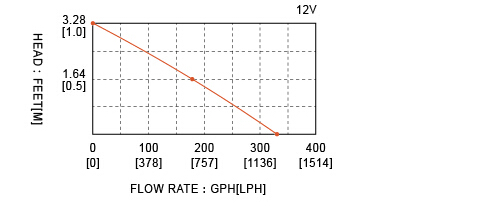

Performance

Voltage

Current

Flow rate

Head (M)

Open

0.87

328

0

12

1.22

176

0.5

12

2

0

1

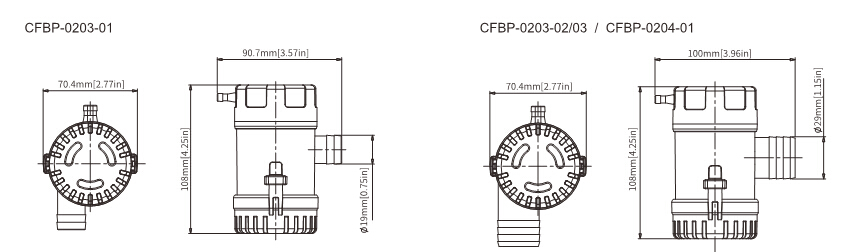

Dimension



Details



Shipping information

Lead Time

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
