DC Solar Submersible Pump
home

Industrial

DC Solar Submersible Pump

12V DC submersible well pump Livestock Watering

12V DC submersible well pump Livestock Watering

The DC Livestock Solar Water Pump system suitable for pond, garden fountains, water circulation or for 4'' or larger well etc

  • item no.:

    CFHF-2201-01
  • lead time:

    5-25 working days
  • product orgin:

    Fujian,China
  • shipping port:

    FUZHOU(MAWEI),Xaimen,Shanghai,Shenzhen,Ningbo
  • payment:

    TT
products details

The solution to your remote water pumping needs.

This 12v submersible water pump is rugged durable and built to last.
The pump delivers a steady 90GPHat its maximum depth of 50 Mwhen supplied with 12VDCIts unique water-tight power connector stops water wicking and prevents potential condensation problems.

Great for livestock watering,irrigation , remote homes and cabins.

This Submersible Solar Water Pump is ideal for all of your remote water needs,greenhouses,livestock watering,irrigation system,ponds,and remote houses will all benefit from this.



Application:


  • Great for livestock watering
  • Irrigation
  • Deep well, remote homes and cabins
Feature:



  • For 4" wells or larger
  • Quick disconnect with "watertight-Gland" design pat pend
  • Corrosion-proof housing with stainless-steel fasteners
  • Runs dry without damage
  • State of the art solid diaphragm
  • Stainless steel fasteners
  • Pump Design: positive displacement 3 chamber diaphragm pump
  • Motor: Permanent magnet thermally protected
  • Internal bypass: 105-110 PSI Max.(7.2-7.5 BARS)
  • Outlet Port: 1/2"(12.7mm)Barbed fitting
  • Inlet:50 Mesh stainless steel screen
  • Mterials: high strength engineered plastics
  • Great for livestock watering

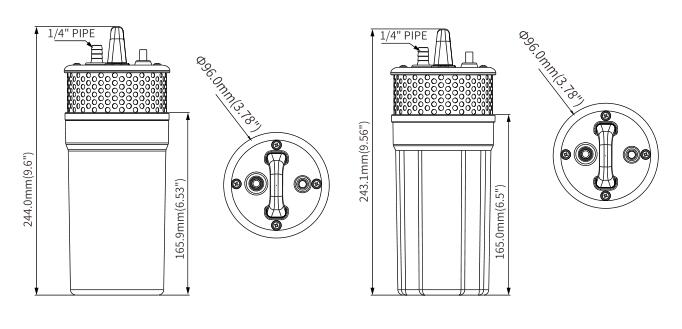

Demension:


Specification:

Model

Open Flow(GPH)

Volt(V)

Max Draw(A)

Max Depth(M)

Wire Lead

Inner box(mm)

CFHP-2204-01

plastic housing

90

12

5

50

Adaptive

353.5X129.5X109.4

CFHP-2205-01

90

24

3

50

Adaptive

353.5X129.5X109.4
