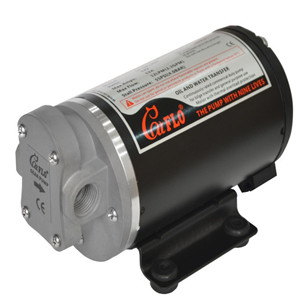

12V 3.2GPM/12LPM 55PSI DC Oil Gear Pumps

12V 3.2GPM/12LPM 55PSI DC Oil Gear Pumps

Transmission fluid (Diesel; Lubricant; Viscous liquids) gear pump is able to use for water and machinery fuel(except gasoline) Industrial use

  • item no.:

    CF-GP-1200
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
  • MOQ:

    10
products details

12V 3.2GPM/12LPM 55PSI DC Oil Gear Pumps

electric gear pump

Scavenge Impeller reversible Gear pump,the best kind of small gear pump for oil scavenging.

Bronze gears,Brass pump body. No diaphragms to fail like our competitors dc oil pumps.

Gear design for maximum scavenge.


Application

Transmission fluid (Diesel; Lubricant; Viscous liquids)
electric gear pump can be able to use for water and machinery fuel(except gasoline)
Industrial use




Features:

Max Flow rate: 12LPM ( 3.8gpm)
Stall Pressure: 55PSI (4.0bar)
Super wear resistance gear
Thermally protected motor
High quality efficient motor

PUMP

Type

Thermally Protected,High Quality Efficient Motor

Max Recommended Temperature

60° C (140° F)

Priming Capabilities

3.2 feet(1m)suction lift

Pressure off

Shut-off Pressure 40 PSI : 30 PSI ± 5 PSI( ± 0.3 bar)

Head

9.8 feet(3m)suction lift

Inlet/Outlet Ports

3/8" BSP*1/2’’bard

Duty cycle

Intermittent

Leads

Wire Leads

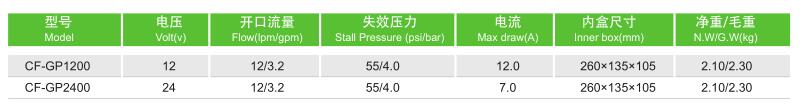

Standard Pump Configurations

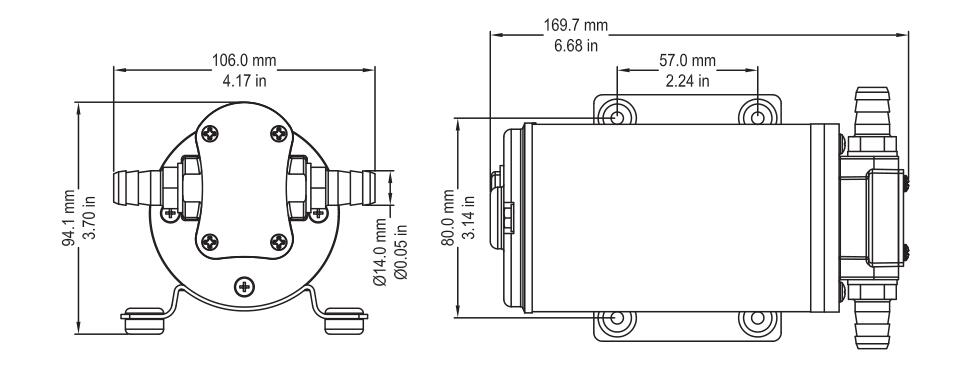

Dimension

dc oil pumps

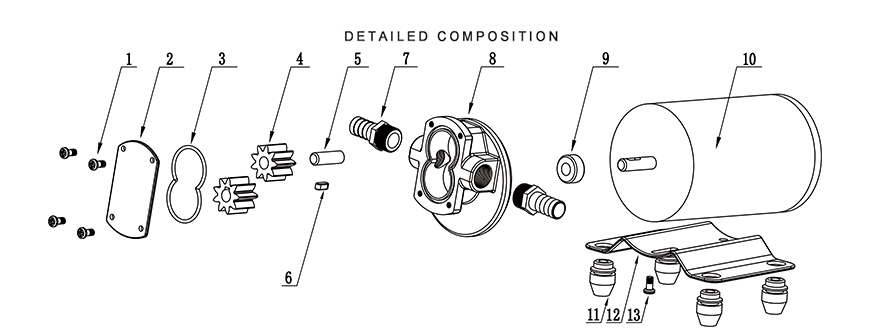

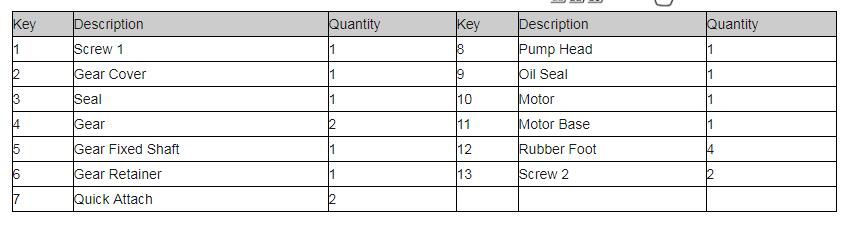

Details


gear pump electrical
