Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
CFDP-4200-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:

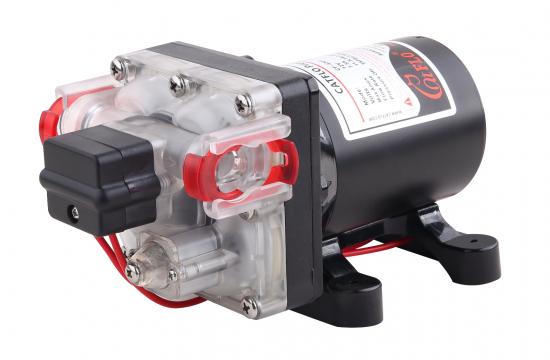

RED AND WHITEFood Grade Micro Mini Small 12V High Pressure Stainless Steel Pump
The liquid food pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The diaphragm pumps are self-priming and can be run dry without harm. Miniature multi outlet water pressure pump serves 2 pins of 3/4” outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.
The liquid pump food grade is single suction, single stage, centrifugal pump and has simple structure, convenient disassembly.
The centrifugal pump is specialized for all the products which are related to food, such as dairy products, beverages, food, cosmetics, food additives, fine chemicals.
Shockproof device, low noise, high efficiency.Safe and durable.
Convenient maintenance. Fine production, not easy to scale.
Features and Benefits
1. food grade hot liquid pump with self-priming function.
2. Low noise, easy installation, stable performance.
3. Appropriated for liquid circulation, transfer etc.
4. Applications: tea machine, coffee machine, grain oil pumping station, car scrub, regular watering, inflatable small pool, fish tank water changes, experimental models, etc.
TYPICAL APPLICATIONS
Micro diaphragm liquid pump is used for dairy products, beverages, food, cosmetics, food additives, fine chemicals
STANDARD PUMP CONFIGURATIONS
| Model | Open Flow | Volts | Max Draw (A) | Inch | PSI | Power Connection | Inner box (cm) |
| CFDP-4200-01 | 11.3 | 12 | 8.5 |
1/2"Barb Quick Attach |
55 | 2-Pin/Leads | 26.5x14.2x13 |
| CFDP-4400-02 | 11.3 | 24 | 4.6 |
1/2"Barb Quick Attach |
55 | 2-Pin/Leads | 26.5x14.2x13 |
|
PUMP |
|
|
Type |
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
60° C (140° F) |
|
Priming Capabilities |
(2.0 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
3/8" (10 mm) hose barb |
|
Valve |
EPDM |
|
Wire connect |
2-Pin/Leads |
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
10.5A |

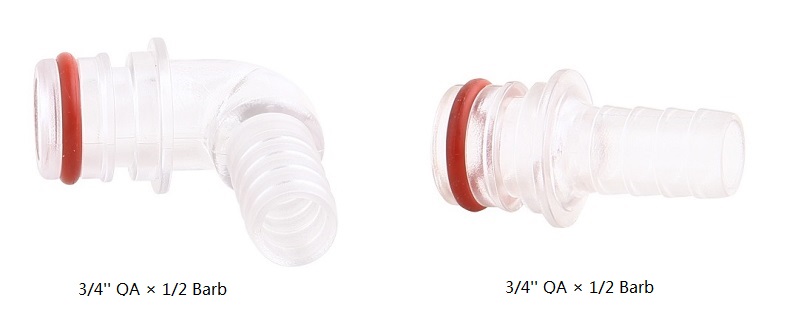

FITTINGS

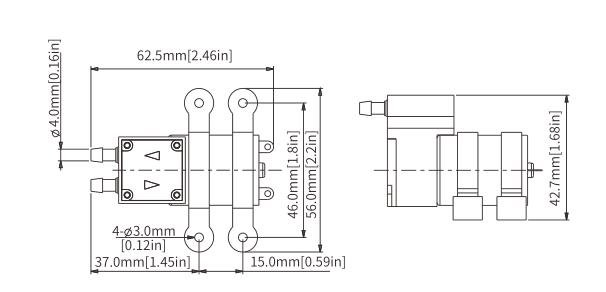

DIMENSIONS
SHIPPING INFORMATION
|
Unit pump weight(N.W/G.W) |
0.62kg/0.7KGS |
|
Unit size |
200*115*78mm |
|
Mater carton size |
58*37.5*38cm |
|
Mater carton quantity |
50pcs |
|
Mater carton weight |
40kgs |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
