Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
CFDP1-3330-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEProduct Description:

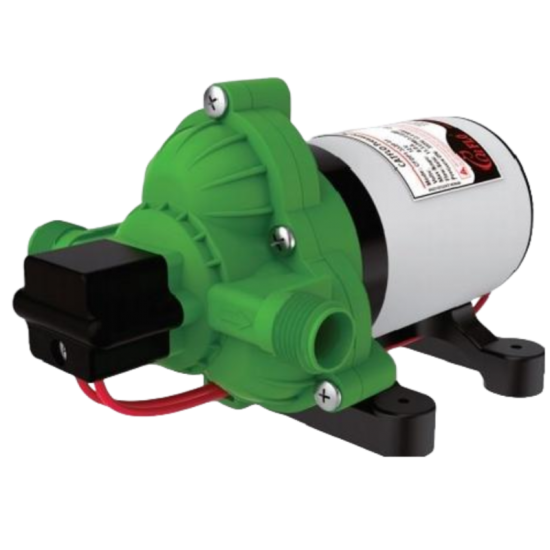

Light-duty diaphragm freshwater pump capable of supplying 2-3 fixtures. Delivers up to 3.5 GPM (13.2 LPM) with 45 PSI shut-off pressure. Self-priming up to 6 feet (1.8 m) suction lift. Completely rubber mounting base for quiet, vibration-free operation. Run dry safe with adjustable pressure switch. 16AWG wire leads. Available in 12V DC, 24V DC, 115V AC, and 220V AC.
Features and Benefits
Performance
Noise & Vibration
Electrical
TYPICAL APPLICATIONS
Yacht and RV fresh water systems, small cabin and galley water delivery, light-duty marine water supply.

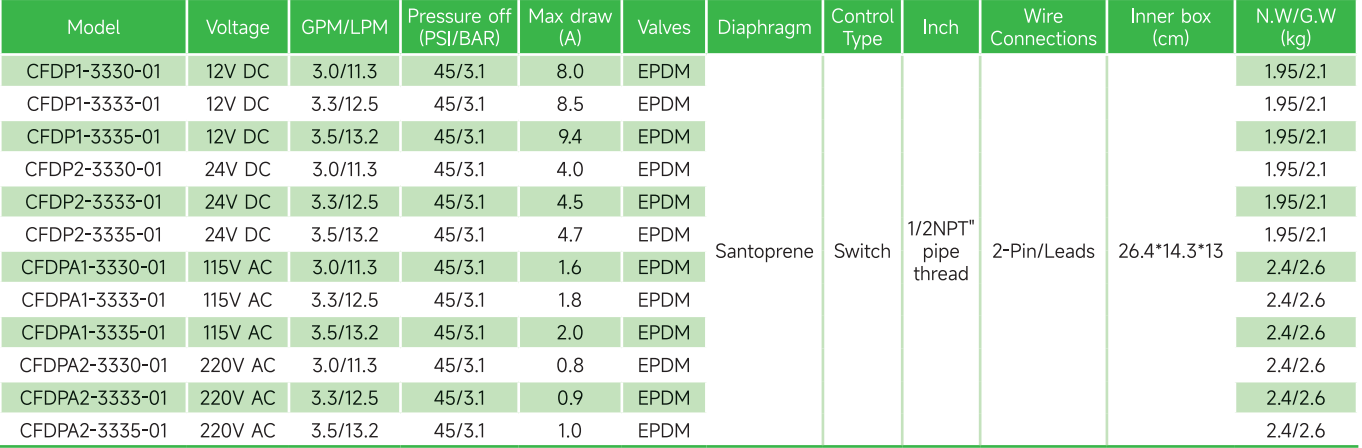

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
140° F (60° C) |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
1/2"-1 4MNPT |
|
Weight |
4.3 lbs (1.95 kg) |

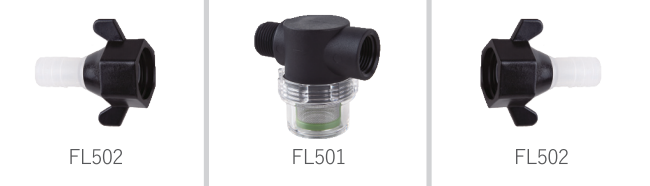

FITTINGS
DIMENSIONS
