Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
CFDP1-4540-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITE
Product Description:
Mid-range diaphragm freshwater pump delivering up to 4.0 GPM (15.0 LPM) with 55 PSI shut-off pressure. Self-priming up to 6 feet (1.8 m) suction lift. Features EPDM valves and Santoprene diaphragm for durability. Industry standard mounting pattern with 1/2"-14 MNPT inlet/outlet ports. Switch & bypass control available. 2-Pin/Leads wire connections.
Features and Benefits
Performance
Materials
EPDM valves and Santoprene diaphragm
Connections
TYPICAL APPLICATIONS
Yacht and RV fresh water systems, marine potable water supply, applications requiring higher flow rates.

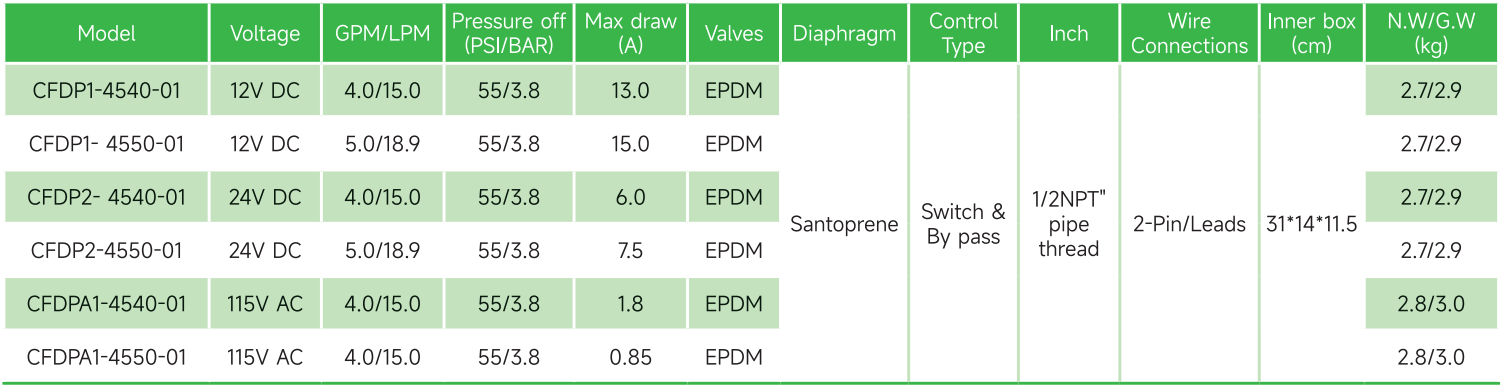

STANDARD PUMP CONFIGURATIONS
|
PUMP
Type
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type
pressure switch controlled or by-pass controlled
Max Recommended Temperature
140° F(60° C) Max
Priming Capabilities
6 feet (1.8 m) suction lift
Pressure off
Shut-off Pressure 40PSI
Inlet/Outlet Ports
1/2"-14MNPT
Valve
EPDM
Weight
5.95lbs (2.7kg)
|
|||||||||||||||||||

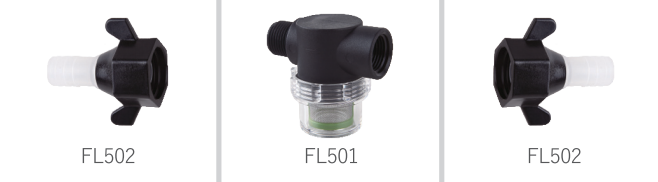

FITTINGS

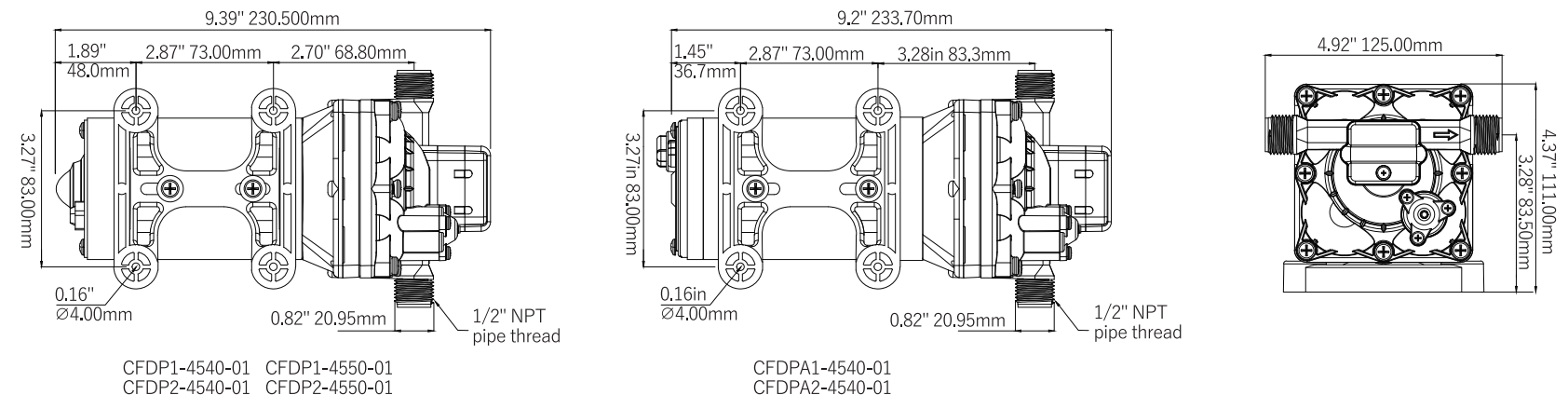

DIMENSIONS
