High flow 4.0GPM Wash Down Pump

High flow 4.0GPM Wash Down Pump

If you are fed up with filling buckets of water for washing your anchor or fish scales off your deck and eliminate the mud - it’s high time to install the Catflo 4.0 washdown water pump on your vessel.

  • item no.:

    CF-410
  • lead time:

    7-30 days
  • product orgin:

    FUJIAN
  • shipping port:

    FUZHOU(MAWEI)
  • payment:

    TT
  • color:

    BLACK
products details

CF-410 Series High flow 4.0GPM Wash Down Pump


These easy-to-use marine washdown pumps enable you to get your boat back in new shape in no time without that broken back and swollen hands. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.



Specification

Max Flow rate
15LPM ( 4.0gpm)
Max Pressure
40PSI (2.8bar)
Motor Voltage
12V/24VDC
Control type
Switch & By pass
Housing Material
Nylon / Polypropylene
Valves / Seals Material
EPDM/VITION
Wire Connection
2-PIN Leads
Diaphragm
Santoprene


Features And Benefits

  • Max Flow rate: 15LPM ( 4.0gpm)
  • Max Pressure: 40PSI (2.8bar)
  • Pressure switch protection: With fully automatic ON/OFF control
  • Anti-Corrosive
  • Duty cycle: Intermittent
  • Run dry without damage
  • Self-Priming
  • Silent running
  • Easy to connect
  • Do OEM as required

Typical Applications

  • Yacht/RV/Caravan pressurized water system
  • Sprayer fixture(ATV sprayer, electric sprayer)
  • Clean machine, Humidifier, Water purification, Medical apparatus
  • Food beverage filling and liquid transfer
  • Any other pressurization system

High Flow Water Pump applications


Pump Configurations



Model Voltage (V) Flow (LPM/GPM) Pressure off (psi/bar) AMP Draw(A) Inner box(mm) N.W/G.W(kg)
CF-410 12 15/4.0 40/2.8 6.5 340×120×105 2.20/2.50
CF-411 24 15/4.0 40/2.8 4 340×120×105 2.20/2.50


Dimensions




Fittings for your option:


PACKAGING & DELIVERY

Packaging Details: Colour box / White box 340*120*105mm
Port: FUZHOU
Picture Example:

PACKING DETAILS CARTOM
Giftbox Size (CM) N.W/G.W ( KG ) PCS/CTN CARTOM SIZE (CM) G.W ( KG )
34 * 12 * 10.5 1.9 / 2.2 10 64*36*24.6 22.6


Lead Time:

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated



Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
water pump
CF-400Series freshwater washdown system portable automatic electric water pump for marine

CF-400 series freshwater boat washdown system portable automatic electric water pump for marine

water pump
CF-410Series freshwater washdown system portable automatic electric water pump for marine

CF-410 series freshwater washdown system portable automatic electric water pump for marine

high pressure washdown pump
High Pressure Small Washdown Pump For Cleaning AC/DC CF-300 Series

This Small Washdown Pump is the best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications.

Yacht RV Water Pump
CF-40 Series High Pressure Fresh Water Pumps For Yachts

CF-40 Series High Pressure Fresh Water Pumps For Yachts are self-priming and can be run dry without damage. This fresh water pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

Deep Well Submersible Pumps

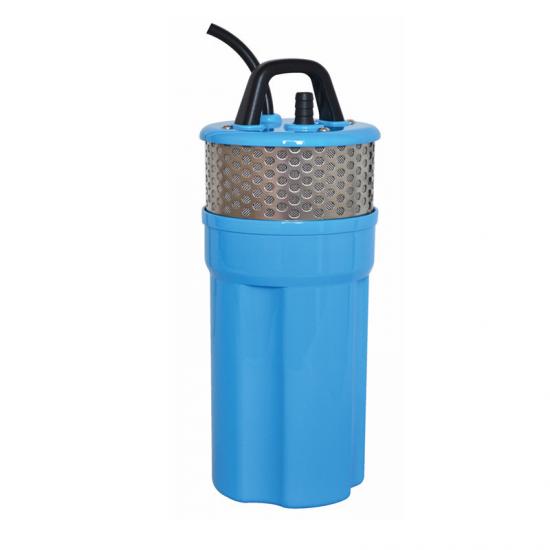

12/24v Solar Powered Deep Well Submersible Pumps
