Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
CFDP1- 4330-01lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEProduct Description:
Diaphragm freshwater pump delivering up to 3.5 GPM (13.2 LPM) with 55 PSI shut-off pressure. Self-priming up to 6 feet (1.8 m) suction lift with run dry safe capability. Quiet operation with industry standard mounting pattern. Internal bypass technology reduces cycling for extended pump life. 16AWG, 9" (22.8 cm) long wire leads. Available in 12V DC, 24V DC, 115V AC, and 220V AC.
Features and Benefits
Performance
Noise & Vibration
Electrical
TYPICAL APPLICATIONS
Yacht and RV fresh water systems, marine potable water delivery, applications requiring reliable and quiet pump operation.

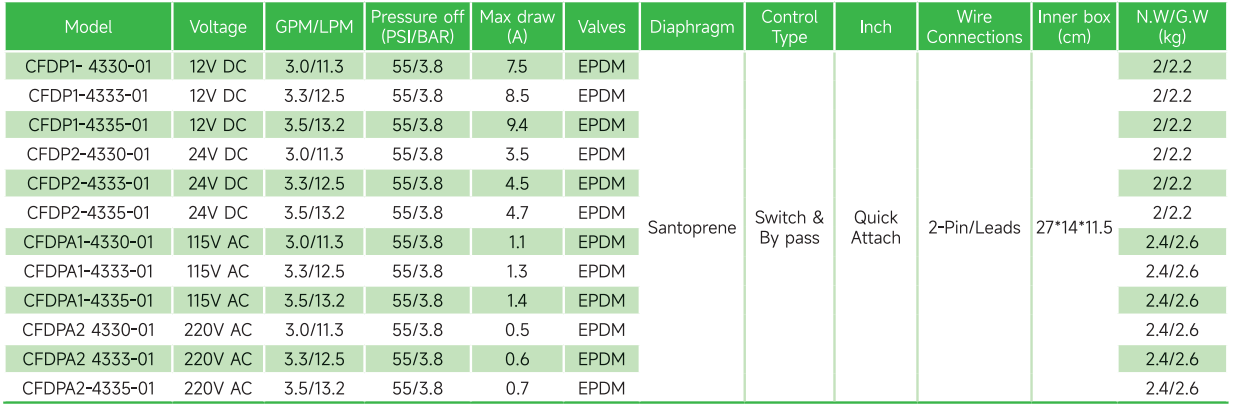

STANDARD PUMP CONFIGURATIONS
|
PUMP |
|
|
Type |
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
|
Control Type |
pressure switch controlled or by-pass controlled |
|
Max Recommended Temperature |
140° F(60° C) |
|
Priming Capabilities |
6 feet (1.8 m) suction lift |
|
Pressure off |
Shut-off Pressure 40PSI |
|
Inlet/Outlet Ports |
Quick Attach |
|
Valve |
EPDM |
|
Weight |
4.4 lbs (2.0kg) |

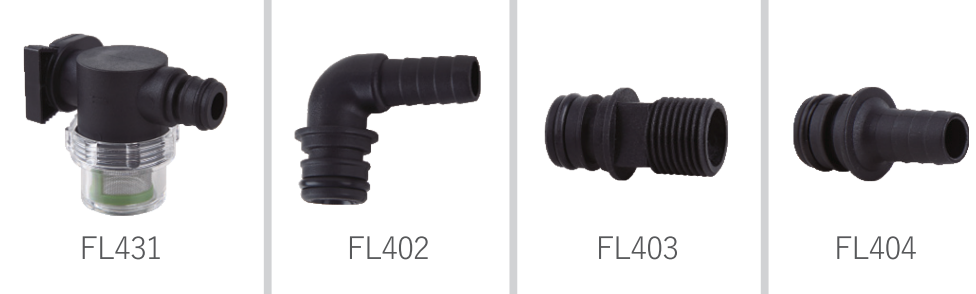

FITTINGS

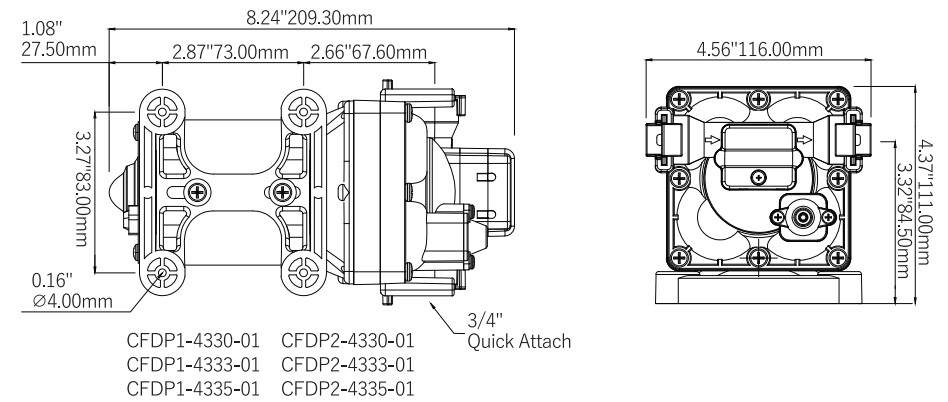

DIMENSIONS
previous :
42 SERIES WATER PUMPnext :
41 SERIES (LONG)WATER PUMPIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
