Micro Stainless Steel food safe pump Mainly used in household appliances, laboratory equipment, environmental monitoring, gas monitoring, automotive tires and other fields.
item no.:
CFDP1-4230-11lead time:
7-30 daysproduct orgin:
FUJIANshipping port:
FUZHOU(MAWEI)payment:
TTcolor:
RED AND WHITEProduct Description:
Diaphragm freshwater pump delivering up to 3.5 GPM (13.2 LPM) with 55 PSI shut-off pressure. Self-priming up to 6 feet (1.8 m) suction lift. Internal bypass technology reduces cycling. Completely rubber mounting base for quiet and vibration-free operation. On-demand water delivery with industry standard mounting pattern. 16AWG, 9" (22.8 cm) long wire leads. Available in 12V DC, 24V DC, 115V AC, and 220V AC.
Features and Benefits
Performance
Noise & Vibration
Connections
TYPICAL APPLICATIONS
Yacht and RV fresh water systems, marine potable water supply, cabin and galley water delivery.

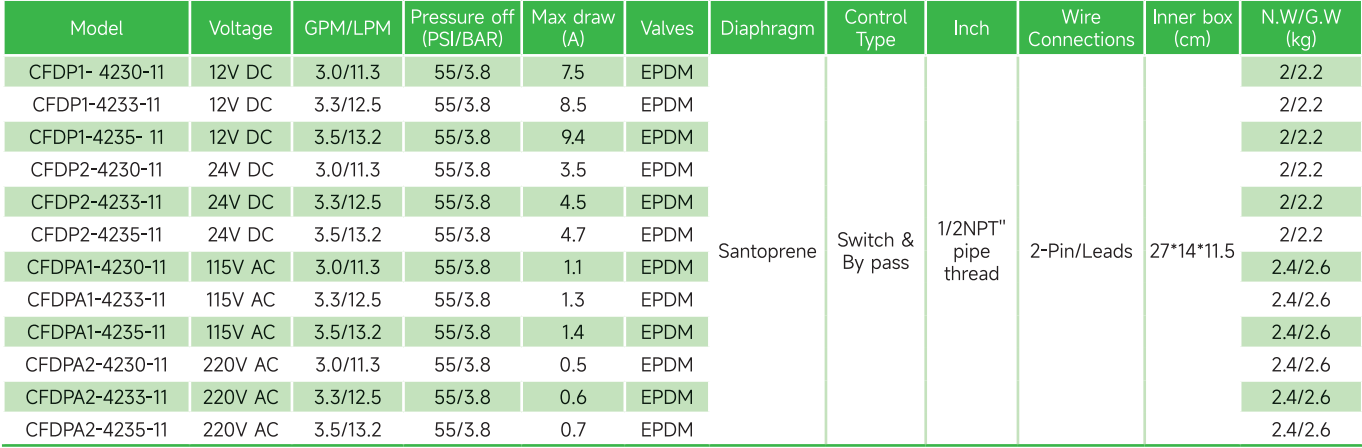

STANDARD PUMP CONFIGURATIONS
|
PUMP
Type
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type
pressure switch controlled or by-pass controlled
Max Recommended Temperature
140° F(60° C)
Priming Capabilities
6 feet (1.8 m) suction lift
Pressure off
Shut-off Pressure 40PSI
Inlet/Outlet Ports
1/2"-1 4MNPT
Valve
EPDM
Weight
4.4 lbs (2.0kg)
|
|||||||||||||||||||
|
|
|
||||||||||||||||||
|
MOTOR |
|
|
Leads |
18 AWG, 14" (35 cm) long with 2-Pin connector / Leads |
|
Duty Cycle |
Intermittent |
|
Max.Amp Draw |
10.5A |

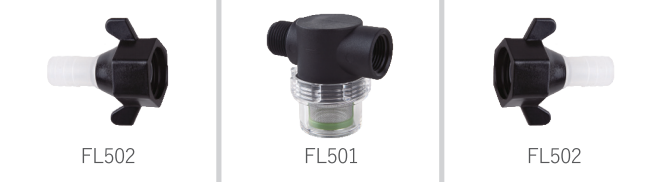

FITTINGS

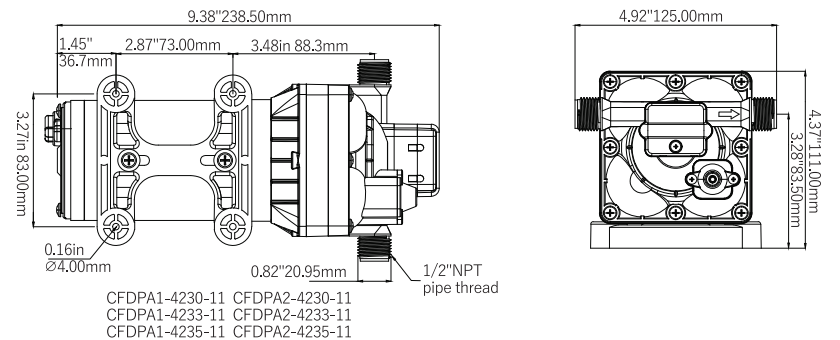

DIMENSIONS
