High Pressure Small Washdown Pump For Cleaning AC/DC CF-300 Series

High Pressure Small Washdown Pump For Cleaning AC/DC CF-300 Series

This Small Washdown Pump is the best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications.

  • item no.:

    CF-300/CF-301/CF-350
  • product orgin:

    FUJIAN
  • payment:

    TT LC
  • color:

    BLACK
  • MOQ:

    10
products details

High Pressure Small Washdown Pump For Cleaning AC/DC CF-300 Series

The portable washdown system is designed for most of the wash down outdoor application. The high performance and easy installation makes it easier to use, even by a child. The design makes it is unnecessary to carry a tank when you use it.

The best choice for cleaning pool, wall, window, machines and other similar applications. This pump boasts a huge 2.8 GPM capacity. This pump has an on-demand switch, so the pump 35 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh, saltwater and chemical applications.

Specification

Max Flow rate
13LPM ( 2.8gpm)
Max Pressure
35PSI (2.4bar)
Motor Voltage
12V/24VDC
Control type
Switch & By pass
Housing Material
Nylon / Polypropylene
Valves / Seals Material
EPDM/VITION
Wire Connection
2-PIN Leads
Diaphragm
Santoprene


Features And Benefits
  • Pressure switch protection: With fully automatic ON/OFF control
  • Smooth and efficient operation
  • Anti-Corrosive
  • Intermittent duty,The continuous working time will be different under different pressure
  • Self-Priming Silent running
  • Easy to connect
  • Do OEM as required
  • 3/4in. quick-connect ports for easy changes

Typical Applications

Yacht/RV/Caravan pressurized water system
Sprayer fixture(ATV sprayer, electric sprayer)
Clean machine, Humidifier, Water purification, Medical apparatus
Food beverage filling and liquid transfer
Any other pressurization system

High Flow Water Pump applications


Pump Configurations

Model Volt (V) Flow(lpm/gpm) Pressure off (psi/bar) Amp draw (A) Inner box(mm) N.W/G.W(kg)
CF-300 12 10.5/2.8 17/1.2 2.8 340×120×105 1.90/2.20
CF-301 24 10.5/2.8 17/1.2 1.6 340×120×105 1.90/2.20
CF-350 12 13/3.4 35/2.4 4.5 340×120×105 1.90/2.20
CF-351 24 13/3.4 35/2.4 3.0/ 340×120×105 1.90/2.20

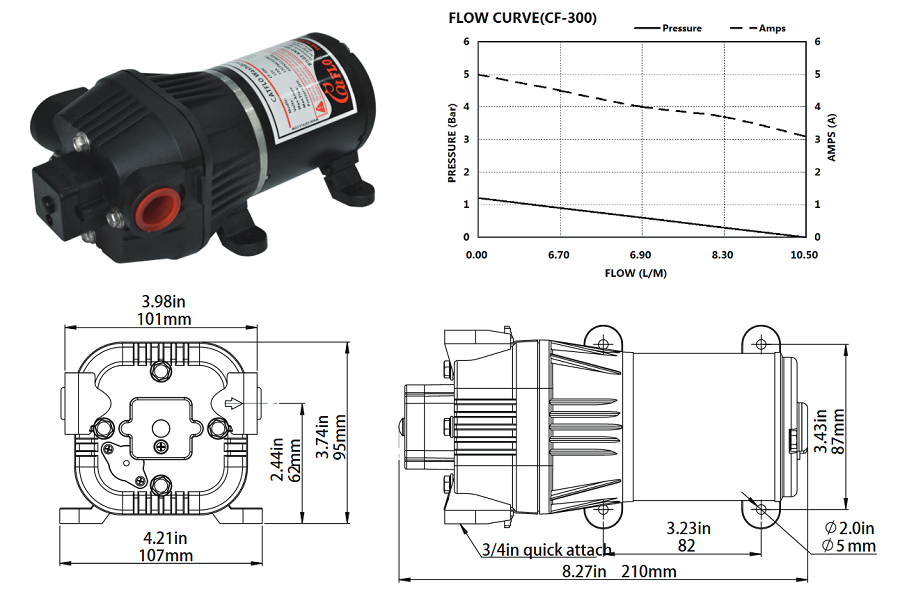

Dimensions




Fittings for your option:


PACKAGING & DELIVERY

Packaging Details: Colour box / White box 340*120*105mm
Port: FUZHOU
Picture Example:

PACKING DETAILS CARTOM
Giftbox Size (CM) N.W/G.W ( KG ) PCS/CTN CARTOM SIZE (CM) G.W ( KG )
34 * 12 * 10.5 1.9 / 2.2 10 64*36*24.6 22.6


Lead Time:

Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
